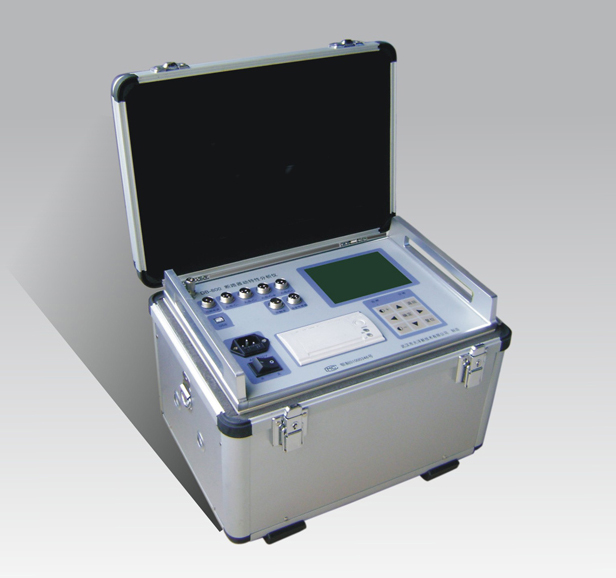

Circuit Breaker Dynamic Characteristic Analyzer

Product Performance

Date: The inherent opening and closing times of 12 circuit breakers, same-phase and phase-to-phase synchronization.

Reclosing: Closing and opening at each break point (golden short time), opening and closing (no current interval), opening-closing-opening.

Jump: Closing jump time per port, jump count, jump process, jump waveform.

Speed: Separation and closure speed, high speed, time-travel characteristic curve.

Itinerary: Total distance, opening distance, overshoot distance, overshoot amplitude, and rebound amplitude.

Electrical Current: Break and close coil current values, current waveform diagram.

Action Voltage: The in-built DC 30-250V/20A (instantaneous operation) adjustable circuit breaker with a built-in action power source automatically completes the low-voltage operation test of the circuit breaker and measures the action voltage value.

Product Features

SF6 switches, GIS integrated electrical equipment, vacuum switches, and oil switches suitable for all models of metal contacts in domestic and international production.

Universal Speed Sensors, Linear Travel Sensors, and Rotational Sensors, extremely easy and straightforward to install.

High-definition main screen, transparent, backlit LCD, with contrast electronically adjustable. Full Chinese menu prompts for operation, a single switch action displays all data and waveform diagrams.

The unit can store multiple sets of on-site opening and closing switch test results, featuring an internal real-time clock for easy archiving and saving test dates and times.

Integrated with a rapid miniature printer, printing all data and charts.

The instrument is equipped with the "Circuit Breaker Data Analysis and Management Software" for PC connection, allowing test results to be directly saved to the hard drive or printed out on various printers for test reports.

The instrument boasts powerful data analysis capabilities, enabling effective analysis of various indicator parameters related to the mechanical characteristics of circuit breakers.

The instrument is equipped with a custom speed addition program, allowing users to freely add various opening and closing speed definitions as needed.

Optional high-precision distance and speed laser sensor available.

Technical Specifications

Date: Range 16,000.0ms, Resolution 0.1ms

Error ① within 100ms: ±0.1ms ±1 character

② Over 100ms with ±1 character accuracy within 0.1%

③ ±0.1ms同期

Speed: Range 20.00 m/s, Resolution 0.01 m/s

Error 1% ± 0.1 m/s
