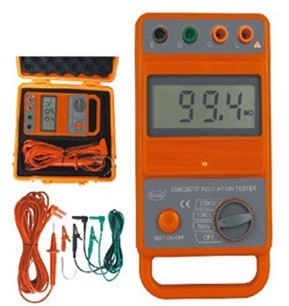

Electrical Insulation Resistance Tester

In recent years, with the rapid development of the power industry.,The increasing use of high-capacity equipment makes it impossible to measure their insulation performance with standard megohmmeters. When testing the insulation resistance of high-capacity electrical equipment, the insulation resistance value is related to the duration of voltage application; the longer the voltage is applied, the higher the insulation resistance, a phenomenon known as the insulation absorption effect. To understand the insulation performance of the test item, it is necessary to first conduct absorption ratio and polarization index tests on it, providing a safety guarantee for subsequent insulation performance tests such as leakage, dielectric loss, and partial discharge. In accordance with the electrical standardization procedures, our company has specially launched5000The Intelligent Insulation Resistance Tester conducts tests on the insulation resistance, absorption ratio, and polarization index of electrical equipment, providing preliminary accurate judgments for a series of insulation tests.

Key Technical Indicators

1Output Voltage:DC:500V\1000V\2500V \5000V

Incorrect    Disparity:±2％FS(FSTo meet the full scale value)；

2Short-circuit Current:>3mA

3No Chinese content provided.

2 ～10MΩ Error: ±5％FS(FSTo meet the full scale value)；

10M ～10GΩ Error: ±5％FS(FSTo meet the full scale value)；

10GΩ ～200GError: ±5％FS(FSTo meet the full scale value)；

200GΩ ～5000GΩ Error: ±10％FS(FSTo meet the full scale value)；

4Display Method - Large Screen Chinese LCD Display

5Terms of Use

Ambient Temperature:  -10℃－40℃

Relative Humidity:   ≤70％RH

6Power Supply: AC/DC, powered by lithium batteries

7Volume and Weight

Volume:     280mm×210mm×100mm；

Weight:     ＜3kg
