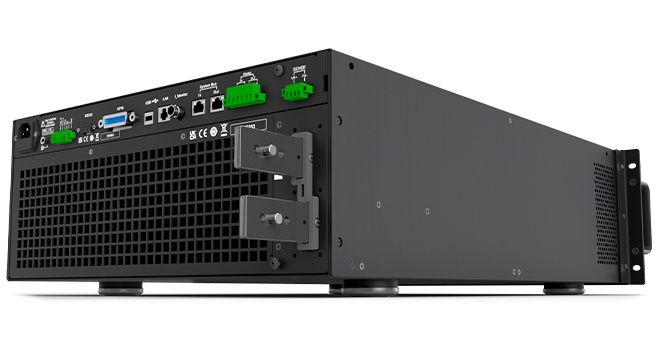

Electronic Load Test Instrument

High-performance DC electronic load600V、1200VTwo voltage ranges, support master-slave parallel operation, power from6 kW No Chinese content provided.600 kWBoasts short-term double power overload capacity. Three-stage current reading range with a resolution as high as40 μAEnhanced with faster loop response and current rise and fall speeds, up to8A variety of working modes, including dynamic mode,List、OCP、OPPTesting, automated testing, and battery testing functionalities. IntegratedCAN、LAN、GPIB、USB、RS232With analog interface, supportsSCPILanguage, Standard EquipmentLabVIEWPowerful, suitable for remote control and system setup.All.SurfaceOur automatic protection feature is suitable for discharge of fuel cells and power batteries, DC charging stations, and on-board chargers.obcPower Electronics, Photovoltaic Solar Energy, High-Voltage Automotive ComponentsDC-DCTesting and usage of motors and other power electronic products.

Product Features

♦ Voltage as high as1200 V

♦ Current Range:1.5 A~15,000 A

♦ Modular master-slave parallel operation, with power up to600 kW

♦ High-Precision Three-Section Current Measurement Range

♦ Short-term double power loading capability< 3s）

♦ Offering a variety of work modes:CC、CV、CR、CP、CC+CV、CV+CR、CR+CC、CP+CC

♦ Please provide the Chinese content to be translated.1 ms Continuous data recording at sampling rates

♦ Discharge function for testing batteries, supercapacitors, and other energy storage devices

♦ Standard EquipmentLAN, USB, RS232, GPIB, CAN Communication Interface, Analog ControlIONo Chinese content provided.

♦ Labview Driver andSCPI Agreement

♦ CV Adjustable loop speed to match different power sources

♦ 25 kHzHigh-Speed Dynamic Mode, adjustable current rise and fall edges

♦ 500 kHzHigh-speed voltage and current sampling rate

♦ Time Measurement and Battery Discharge Testing Features

♦ Short Circuit Simulation, Automatic Testing Function

♦ Seasonal ControllistProgramming

♦ I-monitorMonitoring Function

♦ OCP/OPPTest Features

♦ Soft boot, soft shutdown, to preventon/offNo Chinese content provided.

♦ Protection Features: Overvoltage, overcurrent, overpower, overheating, current oscillation protection, current limiting, power limiting, reverse alarm, etc.

♦ Power outage retains memory function, memory capacity100Group

♦ Independent host control for easy maintenance and installation
