Performance Features and Specifications

I. Features

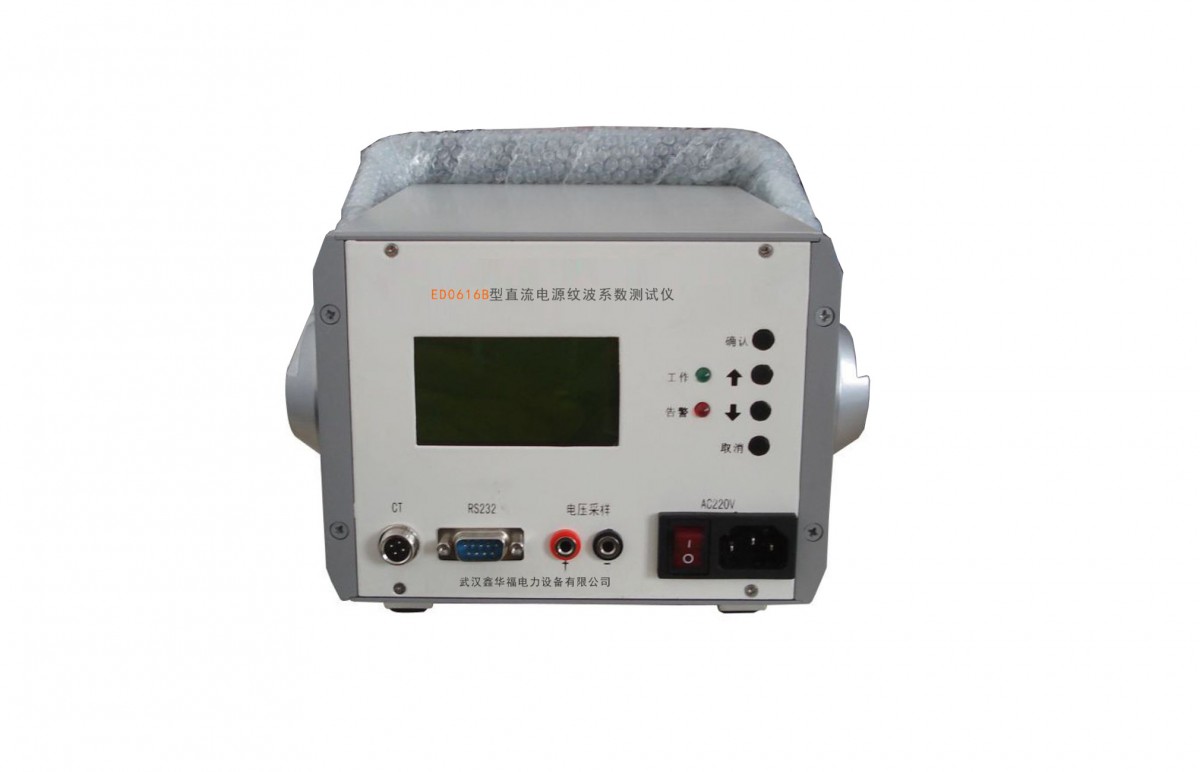

    1、Direct Current (DC) Ripple Factor Test InstrumentUtilizing large LCD screens for display、User-friendly operation with human-computer dialogue interface.

2、Direct Current (DC) Ripple Factor Test InstrumentUtilizing a new high-speed microprocessor, leveragingFFT Fast Fourier Transform and DSP Signal Processing Technology.

3、Direct Current (DC) Ripple Factor Test MeterReal-time measurement of voltage regulation accuracy, current regulation accuracy, and ripple factor under various conditions of DC power supply.

4、Direct Current (DC) Ripple Factor Test InstrumentStorage available100 sets of testing data achieved electronic archiving

5、Direct Current (DC) Ripple Factor Test InstrumentThe analysis software boasts a user-friendly interface and powerful features.

6、Direct Current (DC) Ripple Factor Test InstrumentThe collected data can be visually displayed on the screen, and reports can be printed out for easy analysis.

7、Direct Current (DC) Ripple Factor TesterQuickly access historical records.

Technical Indicators

1、 Work Power:AC220±15V.

2、 Voltage Measurement:DC90~276V

3、 Current Measurement:0-300A ( customizable )

4、 Measurement Accuracy:≤±0.1%

5、 Ambient Temperature:0℃~+40℃

6、 Ambient Humidity:5%~90%

7、 Dimensions:235x245x180mm

8、 Please provide the Chinese content you would like translated into American English.    Quantity:0.5Kg
