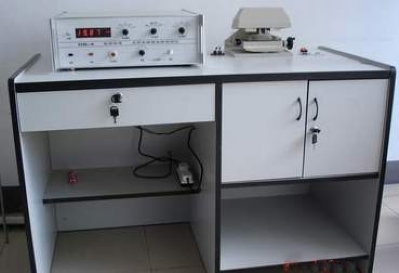

Cable and Wire Tester

Product Description

The Cable-Specific Projector is an optical projector designed exclusively for measuring the insulation and sheath thickness of wire and cable. It uses the method of optical projection to cast the cross-sectional outline of the measured cable's insulation or sheath onto a screen for observation and aiming, and utilizes a micrometer stage for precise length measurements without applying force. This instrument is designed based on the features of various general-purpose projectors, with a focus on the testing needs of the cable industry, thus ensuring simple operation.

Technical Specifications:

1Workbench glass diameter:48Millimeters.

2Workbench Schedule      Vertical       0-25Millimeter (a unit of measurement)

                           Lateral       0-20Millimeters (for auxiliary adjustment only)

3Micro division value of the micrometer drum wheel on the workbench:0.01Micron

4Workbench tilt range:0-360Translation not provided as no Chinese content was included.

5Projection Screen Size:210*210Millimeters.

6Magnification Ratio of Projection:16，10

7Field of View Diameter:13，20Millimeter

8Instrument dimensions:830*275*470Micrometers.

9Weight:45Kilograms.
