Capacitance Tester

No Chinese content provided. 、Overview

To reduce reactive power losses, power systems commonly employ the method of connecting capacitor banks in parallel to improve power factor. In practical applications, the failure rate of capacitor compensation devices is relatively high, which is determined by the characteristics of the capacitor unit's operating state. Therefore, it is crucial to regularly inspect capacitor units to detect defects early on, and prevent the escalation of faults.

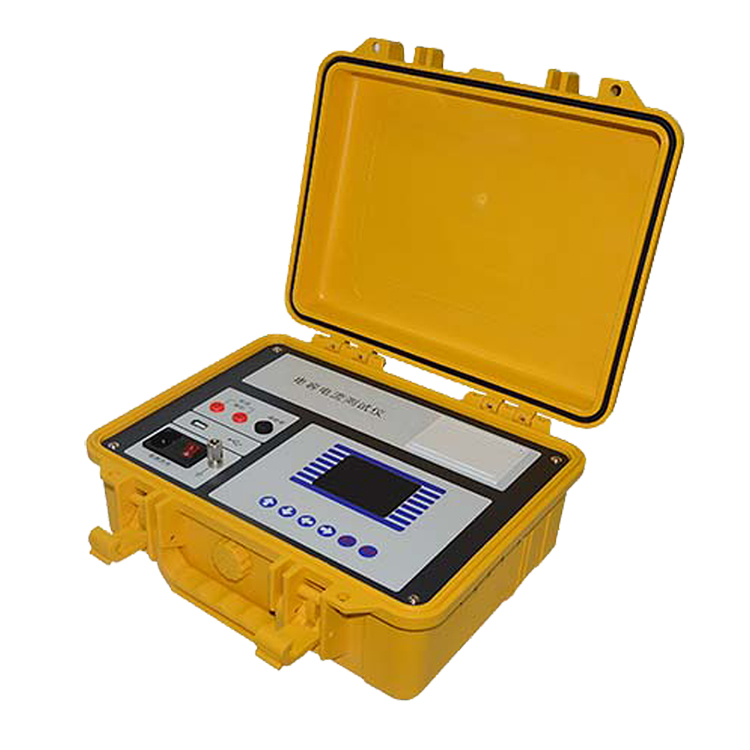

At the site, capacitors are connected in parallel groups, so a standard capacitor meter requires the removal of leads before measurement, which is labor-intensive and prone to wiring errors. Our company has developedThe ED2018B Single-Phase Capacitive Inductive Tester can measure individual capacitors in a group of parallel connections without disconnecting the wires. It also measures inductance, resistance, and current, featuring easy wiring and simple operation, significantly enhancing the efficiency of on-site testing and reducing the likelihood of errors caused by wire disconnection and reconnection.

No Chinese content provided. Main Features and Characteristics

Capacitance Measurement: Instruments can test individual capacitors within a group without disconnection, offering convenient testing. It simultaneously displays the test results of the capacitance, as well as the voltage and current.

2. Inductance Measurement: The instrument displays the measured inductance value while also showing the applied voltage and current during measurement.

3. Resistance Measurement: The instrument displays the measured resistance value while simultaneously showing the applied voltage and current during the measurement.

4. Current Measurement: Real-time display of measured current.

5.  Microcomputer-controlled, full Chinese menuEasy to use, simple to operate.

6. The instrument features an integrated printer for displaying and printing data; it has built-in storage and supports external USB drives, ensuring data is not lost in the event of a power failure. The instrument can separately store capacitance, inductance, and resistance measurement data, with each category capable of holding up to 100 sets.

7． Forever. JiuCalendar and Clock Features, time calibration is available.

8. The test power supply is equipped with overcurrent protection, ensuring that short-circuit of the power output will not damage the instrument.
