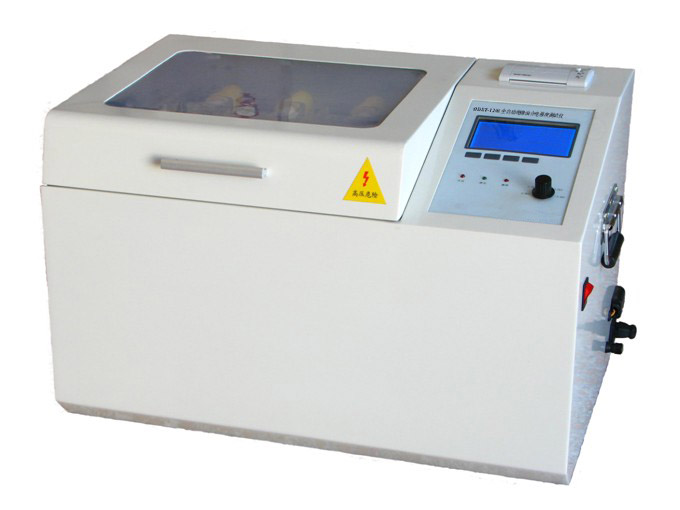

Electrical Strength Tester

This instrument features a single-cup, portable design.

5.4-inch LCD display with easy-to-use Chinese menu for human-machine dialogue, featuring temperature and humidity measurement as well as clock display functions.

Operation is simple, automatically completing operations such as boosting pressure, maintaining, stirring, settling, calculating, data storage, and print output.

Features automatic data storage during power outages, ensuring test results are saved.

Equipped with over-pressure, over-current, limit position, and grounding alarm functions to ensure the personal safety of operators.

Unique waveform tuning feature eliminates harmonic interference for accurate measurement.

Utilizing dual control with CPUs and PLCs ensures stable and reliable operation of the instrument.

Name: Indicator

Output Voltage: 0~80 kV (adjustable)

Voltage Distortion Rate < 2%

Step-up Rate: 2.0～3.5 kV/s (Δ = 0.5 kV/s)

Transformer Capacity: 1.5 kVA

Measurement Accuracy: ±(2% + 2 digits)

Power Voltage: AC 220V ±10%

Power Frequency: 50 Hz ± 2%

Power: 200W

Temperature Range: 0-45°C

Relative Humidity < 85% RH

Dimensions: 410×390×375 (mm)

Net Weight: ~ 29 kg
