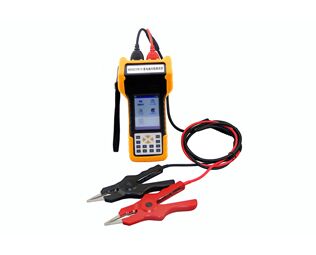

Battery Capacity Tester

Purpose

The battery capacity tester is primarily used to measure the internal resistance of batteries, evaluating their condition through resistance values, thereby serving as a reference for battery management.

Features

Compact and lightweight, designed for easy portability and operation.

Instrument Functions: Single Battery Measurement, Grouped Battery Measurement, Oscilloscope

Both button operation and touch screen operation are available.

Technical Indicators

Measurement Range:

Internal Resistance: 0.0mΩ - 100mΩ

Voltage: 0.000V – 16V

Small measurement resolution

Internal Resistance: 0.01 mΩ

Voltage: 1 mV

Measurement Accuracy

Internal Resistance: ±2.0% rdg ±6 dgt

Voltage: ±0.2% rdg ±6 dgt

240x320 24-bit 3.5-inch TFT LCD with Touchscreen

Memory Capacity: 16 MB Flash

External Storage Interface: USB (plug-in USB flash drive)

Work Power: Rechargeable lithium-ion battery, fully charged for 5~6 hours of operation

External Power Supply: AC100~240V/DC8.4V-1A Power Adapter/Charger
