Current Transformer Calibration Device

I. Product Introduction

High-voltage electrical energy metering devices at power plants and substation, as well as those for a large number of end-users, are crucial to the interests of power generation, transmission, supply, and the users. To ensure accurate measurement, it is imperative to comply with...SD109 "Electric Energy Metering Equipment Inspection Code" and DL/T448-2000 "Technical Management Code for Electric Energy Metering Equipment" are undergoing inspections.

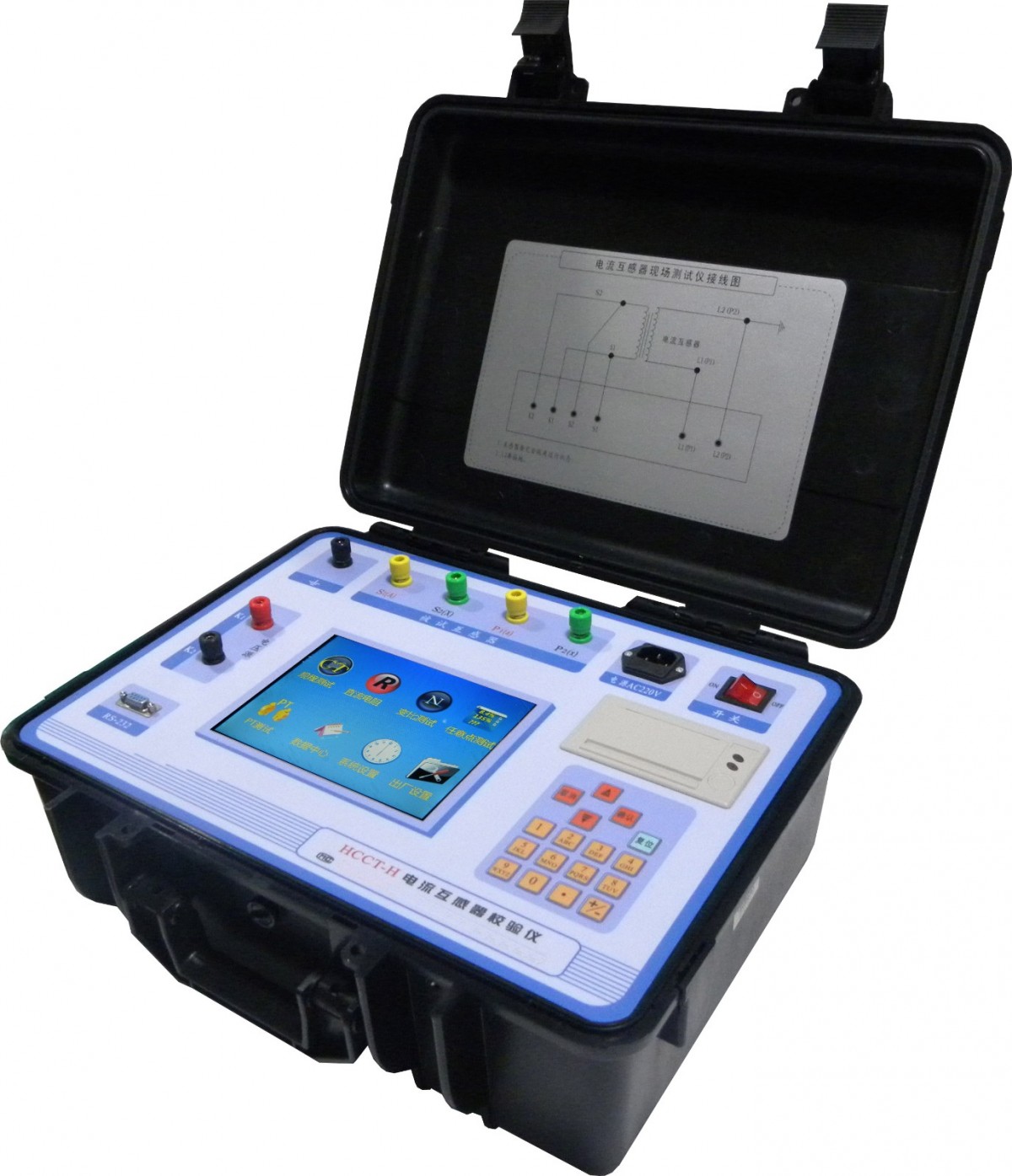

Our company'sThe HCCT-H Current Transformer Field Calibration Instrument is developed with advanced testing technology, large-scale electronic circuit design, and in compliance with national regulations. It addresses the issues of high workload and complicated operations during on-site calibration of current and voltage transformers. The product is also reliable in performance and boasts powerful functions.

II. Features

The HCCT-H Current Transformer Field Calibration Instrument features the function of measuring current transformer errors using the recursive method, facilitating on-site calibration of measurement devices.

2. Field calibration of current transformers requires no standard current transformers, current boosters, load boxes, voltage control boxes, or large current conductors.Extreme.To realize the calibration of current transformers for simple test wiring and operation.Extreme.Significant reduction in work intensity and enhancement of work efficiency, facilitating on-site field calibration of transformers.

The HCCT-H current transformer field calibration instrument features an internal standard voltage transformer with the same transformation ratio as the measured current transformer. Its accuracy reaches 0.05 class, allowing for precise measurement of the transformer ratio and no-load error of the measured current transformer. Then, by combining the results of impedance and admittance tests, the transformer's error can be calculated.

4. Utilize power source tests with frequencies close to the industrial frequency to prevent on-site electromagnetic radiation at industrial frequencies and series interference.

5. Wide measurement range, up to5A/5A to 31500A/5A or 5A/1A to 6300A/1A。

6. Features current transformer ratio and secondary winding resistance testing functions.

7. Adopted800×600 High-Resolution TFT Color LCD Touch Display with Large ScreenThe interface and operation design are highly user-friendly, incorporating touch screen assistance to make operations more convenient and efficient.

8. By utilizing precise software algorithms, the accuracy of data measurement has been further enhanced.

9. Features intelligent judgment of external connection status, alerting to wiring errors, ratio discrepancies,Extreme.Sexual misconduct.

10. The system automatically rounds test data and identifies any deviations beyond the acceptable range. Deviations are displayed in orange, and an alert is shown in the bottom right corner of the window, providing a clear and intuitive understanding of the transformer's data characteristics.

11、China's First-In-The-Nation Device for Simultaneously Testing the Ratio and Voltage TransformerExtreme.Sexual Function。

12. Directly issue on-site verification conclusions: qualified or overstandard.

13. The large-scale storage can hold up to 1,000 field test data entries.

Connect computers to print data certificates via RS232 or USB interfaces.

15. The engineering plastic mold box is designed with shock and pressure resistance features to ensure the safety of both operators and equipment on-site.
