Current Transformer Calibration

I. Product Introduction

High-voltage power measurement devices at power plants and sub-stations, as well as those for numerous end-users, are crucial to the interests of power generation, transmission, supply, and the users themselves. To ensure accurate measurement, it is imperative to adhere to...SD109 "Electric Energy Metering Equipment Inspection Code" and DL/T448-2000 "Technical Management Code for Electric Energy Metering Equipment" are undergoing inspections.

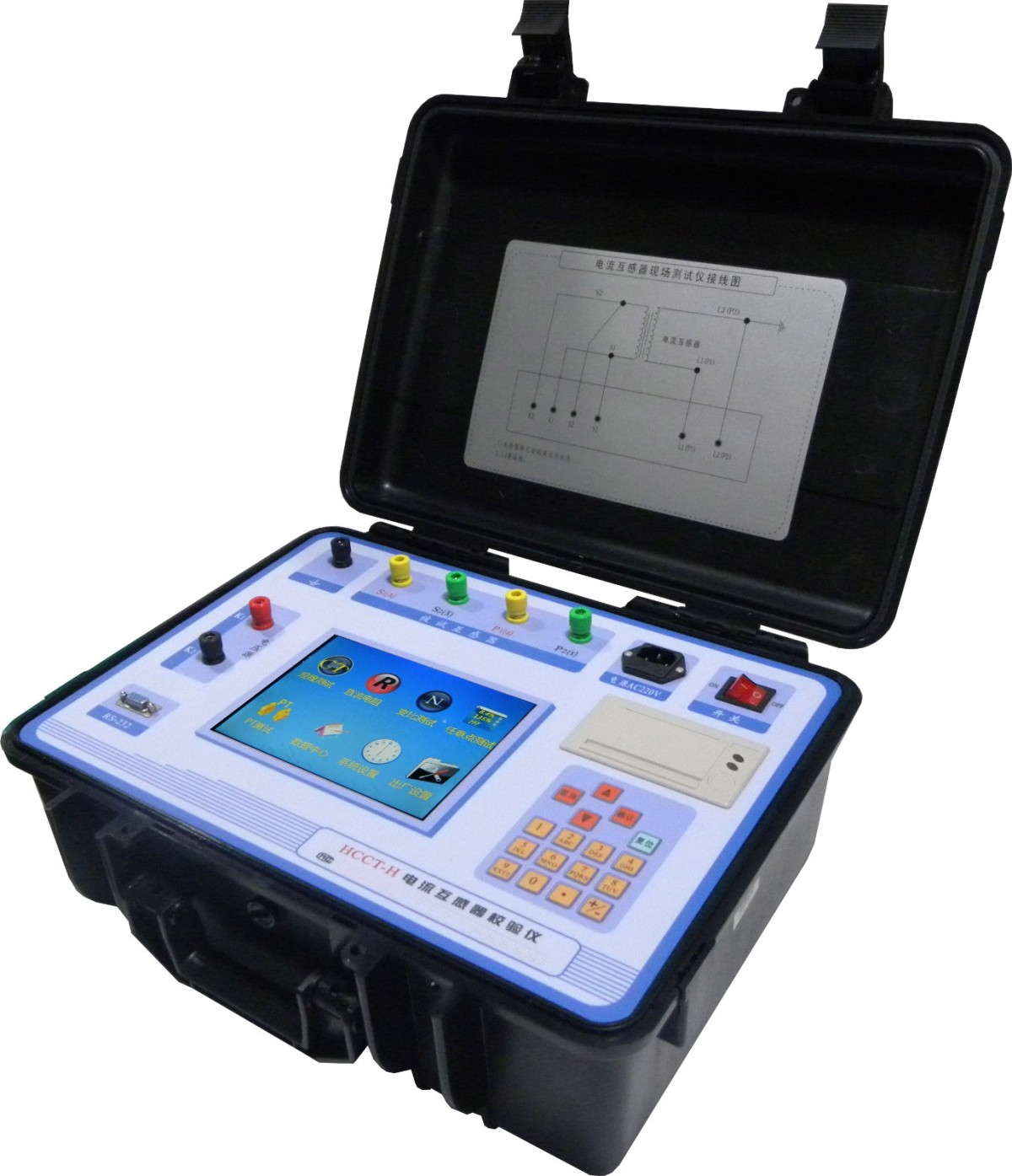

Our company'sThe HCCT-H Current Transformer Field Calibration Instrument is developed with advanced testing technology, large-scale electronic circuit design, and in accordance with national regulations. It addresses the issues of high workload and complex operations in the on-site verification of current transformers and voltage transformers. The product boasts reliable performance and powerful functions.

Section Two: Features

The HCCT-H Current Transformer Field Calibration Instrument features a recursive method for measuring current transformer errors, facilitating on-site calibration work for measuring devices.

2. Field calibration of current transformers requires no standard current transformer, current booster, load box, voltage regulator control box, or large current conductors.Extreme.To achieve the calibration of current transformers for simple test wiring and operation.Extreme.Significantly reduced work intensity and improved efficiency, facilitating on-site transformer calibration operations.

3. The HCCT-H Current Transformer Field Calibration Instrument is equipped with a standard voltage transformer of the same transformation ratio as the measured current transformer. Its accuracy can reach 0.05 grade, accurately measuring the transformation ratio and no-load error of the measured current transformer. Then, by combining the test results of impedance and admittance, the error of the transformer can be calculated.

4. Employed power source tests with frequencies close to industrial power frequency to prevent on-site electromagnetic radiation from industrial power frequency and series interference.

5. Wide measurement range, up to5A/5A to 31500A/5A or 5A/1A to 6300A/1A。

6. Features testing functionality for current transformer ratio and secondary winding resistance.

7. Adopted800×600 High-Resolution Large-Screen TFT Color Liquid Crystal Touch DisplayThe interface and operational design feature a humanized approach, incorporating touch screen assistance to make operation more convenient and swift.

8. By utilizing precise software algorithms, the accuracy of data measurement has been further enhanced.

9. Features intelligent judgment of external wiring conditions, alerts for wiring errors, ratio discrepancies,Extreme.Sexual misconduct.

10. The system automatically rounds test data and identifies any deviations beyond the acceptable range. Deviations are indicated in orange, and a notification of deviations is displayed in the bottom right corner of the window, providing a clear and intuitive understanding of the data characteristics of the transformer.

11、Domestically first-of-its-kind voltage transformer ratio testerExtreme.Sexual function。

Directly issue on-site verification conclusions: pass or fail.

13. The large-scale storage can accommodate up to 1,000 field test data entries.

Connect to the computer via RS232 or USB interface to print data certificates.

15. Utilizing engineering plastic mold cases for vibration and pressure resistance, ensuring safety for both operators and equipment on-site.
