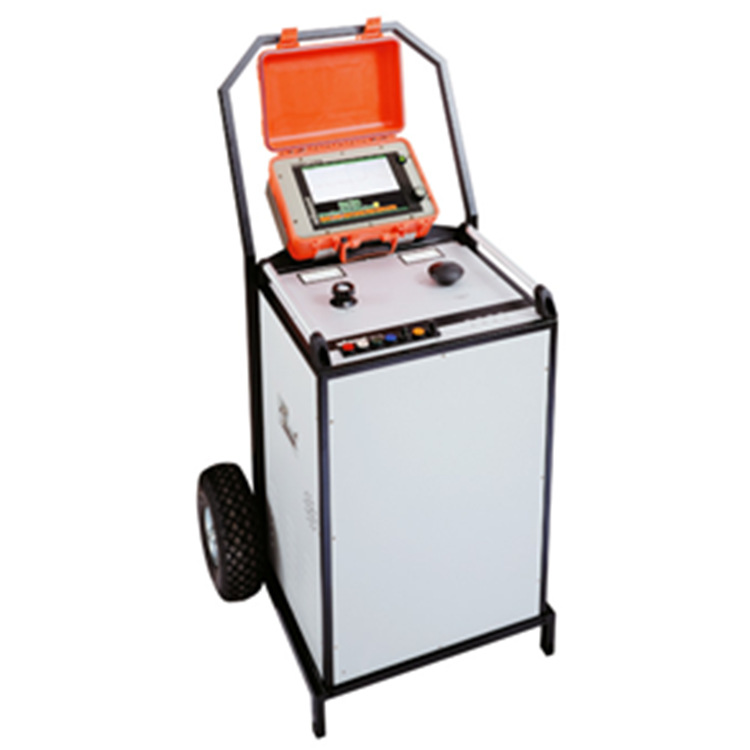

Fault Detection Instrument for Power Cables

Cable Fault Tester Features

1Comprehensive Functionality: This power cable fault tester ensures safe, rapid, and accurate testing. Utilizing both low-voltage pulse and high-voltage flashover methods, it can detect various cable faults, particularly for flashover and high-resistance faults, without the need for burn-through testing. With the addition of an acoustic location instrument, the cable fault tester can accurately pinpoint the fault location.Please provide the Chinese content to be translated..Certainly.Location

2High Accuracy Testing: This cable fault tester utilizes high-speed data sampling technology,A/DSampling speed100MHzThe testing instrument is now capable of reading with a resolution of1mThere is no Chinese content to translate.1m

3High level of intelligence: The cable fault tester displays test results in waveforms and data automatically on a large-screen LCD screen, providing intuitive fault identification. It also features a full Chinese menu display with operational functions, eliminating the need for specialized training for operators.

4The Power Cable Fault Tester features waveform and parameter storage, as well as recall functions: utilizing non-volatile devices, waveforms and data are not easily lost after shutdown.

5The cable fault tester features dual-trace display capabilities: it allows for a comparison between the test waveform of the faulty cable and the normal waveform, which is beneficial for further fault judgment.

6The Cable Fault Tester features waveform expansion ratio function: Adjusting the waveform ratio allows for waveform expansion.Please provide the Chinese content to be translated..Certainly.Test.

7The cable fault tester allows for adjustable positioning of the dual cursors, directly displaying the direct or relative distance between the fault point and the test point.

8The power cable fault tester features the capability to adjust the propagation speed in real-time based on the different cables being tested.

9The cable fault tester is compact and portable, featuring a rechargeable battery for easy transportation and use.

Cable Fault Tester Parameters

EDHZC-3Parameters for the power cable fault tester should be referred to the product manual or contract. If you find any inaccuracies in the technical parameter information, please feel free to correct them.

Cable Fault Tester Model EDHZC-3

Cable Fault Tester Name Cable Fault Testers, Cable Fault Detectors, Power Cable Fault Testers, Underground Cable Fault Testers, Buried Cable Fault Testers, Overhead Cable Fault Testers

Cable Fault Tester with Extended Testing Distance 15Km (Mingxian Road Achieved100Kilometers)

Blind Spot Detection 1m

Reading Resolution 1m

Power consumption 5VA

Terms of Use Ambient Temperature:0℃～＋40℃

Volume 275×220×160mm3

Weight 1.8kg
