Cable Oscillation Wave Partial Discharge Tester

1Company Brief

The integrated partial discharge location system is mainly used for partial discharge diagnosis of medium-voltage cables. The system's test frequency is20HzTo a damped AC voltage of several hundred hertzDAC）。

The integrated partial discharge location system is primarily used for partial discharge diagnostics of medium-voltage cables. The system's testing frequency is:20HzAt several hundred hertz of damping AC voltage (DACThe damping alternating voltage generated during the system's testing process can reach...30kVOur software system integrates with advanced system hardware and software for diagnostics.VLFPlease provide the Chinese content you would like translated into American English.DACThe on-site voltage testing, which integrates non-destructive partial discharge testing and dielectric loss measurement, serves as a fundamental and effective testing method for the operation, maintenance, and repair of cables. It is nearly applicable to all medium-voltage cable types, such as...XPLEAnd the necessary test voltages for cables with paper insulation, as well as diagnostic tools.

Damping AC voltage as high as up to was produced during the system's testing process.30kV, and combines advanced system hardware and software for diagnostics, including:

-New transistor technology and laser control techniques, such as high-voltage transistor switches.

-Electronic components, digital signal processing, such as high-voltage transistor switches, high-voltage sources.

-Digital Signal Processors and Filters

-Wireless connectivity and built-in computer systems, including partial discharge detectors, control units, and partial discharge analyzers.

1Hardware

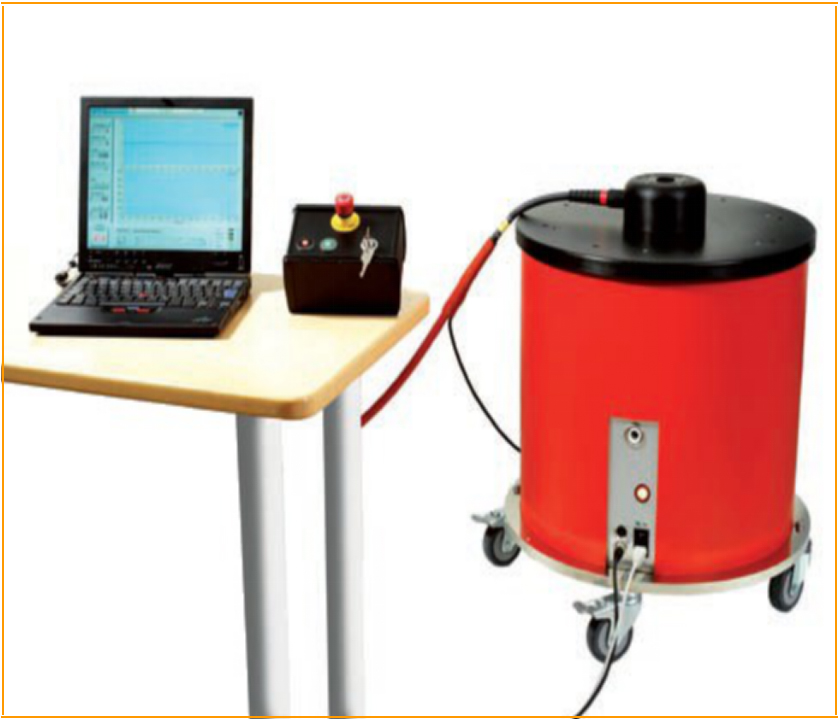

High-voltage Units: High-voltage coils, high-voltage voltage dividers, high-voltage switches, partial discharge coupling capacitors, coupling units, and partial discharge detectors.

Control Unit: The notebook unit is primarily used for controlling test programs, analyzing test data, and storing test data. External connections are high-voltage, with control switches for regulating high-voltage pressure. After grounding the system and internal connections are made, it is then connected to the cable being tested.

2Software

The software is primarily composed of:

The test analysis software is the main interface for user operations; it is controlled by a laptop. The software can perform the following actions:

-Define Test Objects

-Calibrate test circuit

-Pressure Test

-Test and save test data.

The browsing software is integrated within the system but can also be installed independently as per customer requests. The primary uses of the software include:

-Display and manage test data, generate test reports.

-Utilizing a pulse reflectometer to analyze test data.

-Generate database features.

The user interface is controlled by the mouse and keyboard. Each key on the screen is labeled with its corresponding function. Every active function key allows for the corresponding operation or directly enters the next operation interface. Click“EscPress the key to return to the system's starting interface.

The software's interface display and features can be summarized as follows:

Tested Cable: Define the parameters of the tested cable system.

Test Calibration: Initiate and execute calibration of the test circuit.

Field Diagnostics: Conducting tests and saving data to diagnose power cables on-site.

Review Report: Analyze data and generate test reports.
