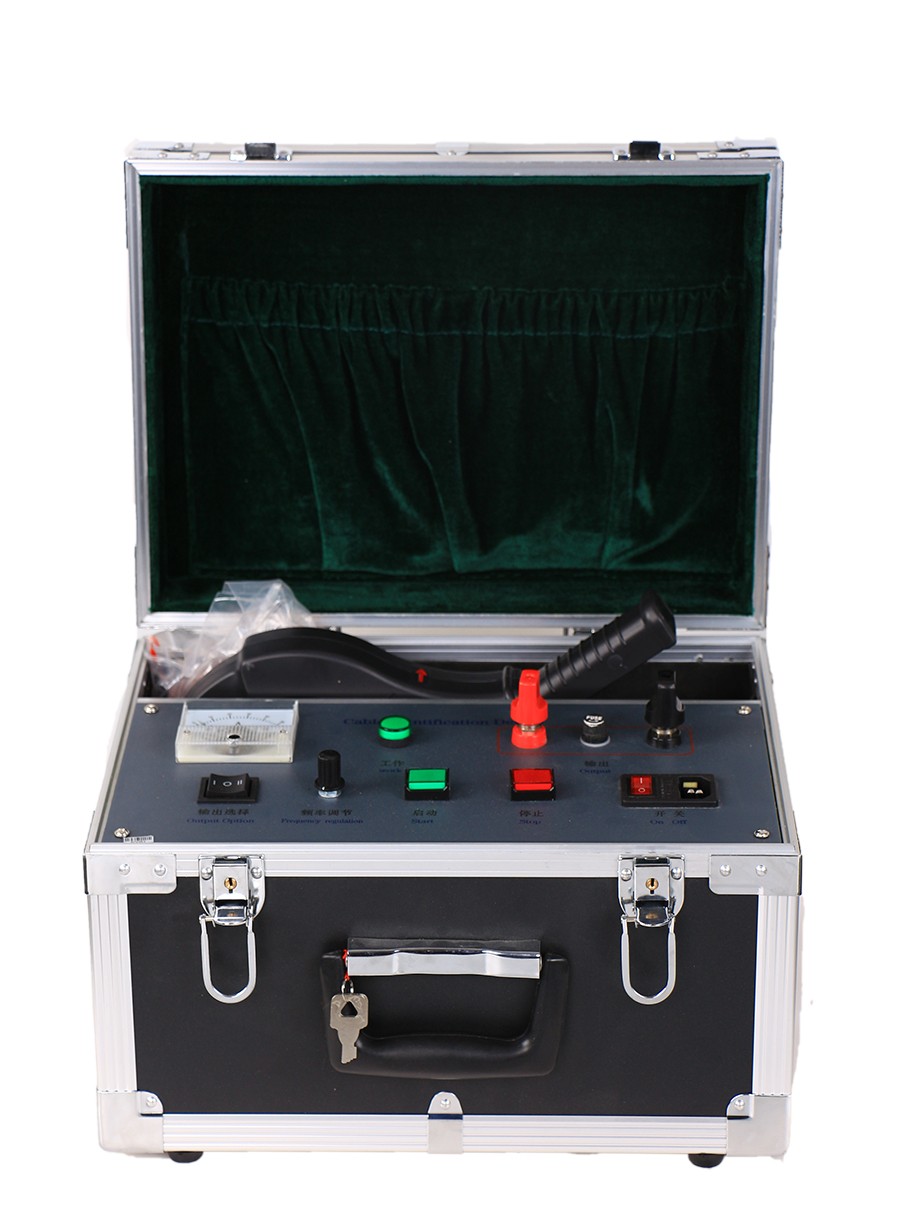

Cable Path Detector

2.1 Key Features

1. Determine the routing of underground pipelines

2. Determine the burial depth of underground pipelines

3. Identification of Target Pipeline in Multi-Pipeline Situations

4. Detect and locate pipeline insulation fault points

2.2 Key Features

1. Employing advanced signal processing technology and new integrated circuit components to achieve excellent testing performance.

2. Various transmission methods for measuring signals:

（1) Injection Method: Used for pipelines with injection points.

（2) Clamping Method: Used for pipelines with an exposed section, making it convenient for clamping with a clamp.

（3) Inductive Method: Used for pipelines without injection points or exposed lines.

3. Multiple Measurement Frequencies: Includes four active frequencies of 480Hz, 7.7KHz, 31KHz, and 61KHz, as well as the passive 50Hz frequency of power cables; users can select based on the environment (for special measurement frequencies, please note in the purchase contract).

4. Various positioning modes and features to enhance testing efficiency:

（Peak Mode: Through measuring the signalExtreme.Determine the location of the route by a high value.

（2)谷值模式: By measuring the signal's...No Chinese content provided for translation..Small value determines the route location.

（3) Route Direction: Intuitively and swiftly indicates the direction of the route.

（4) Insulation Fault Finding (FF): Locate and identify fault points caused by deterioration of pipeline insulation.

（5) Stethoscope: The tube loaded with signals identified through the stethoscope head from among numerous tubes.

5、Auxiliary Functions:

（1) Gain Auto-Adjustment: Automatically adjusts the receiver's gain to keep it in an optimized state, eliminating the need for manual adjustments.

（2) Sound Function: The receiver visually reflects the size of the measurement signal through the tone variations emitted by the speaker.

（3) Pipeline Status Detection: During the injection mode, the transmitter first checks the insulation resistance and residual voltage of the pipeline before applying the signal to the target pipeline. If the insulation resistance on the pipeline is low (nearly a short circuit to ground), the transmitter will automatically exit this mode. If the residual voltage is high, the transmitter will alert, and the operator should immediately stop loading the signal and shut down the transmitter.

（4) Battery Power Monitoring: Real-time battery power detection, with an automatic shutdown and alarm triggered when the power level reaches the protection threshold.

（5Power-Saving Feature: Transmitter Activation30Approximately 2 seconds after the receiver is turned on, if no other keys are pressed, ...10After approximately one minute of no other key presses, the machine will automatically shut down to conserve battery power.
