Surface Resistance Meter

Introduction

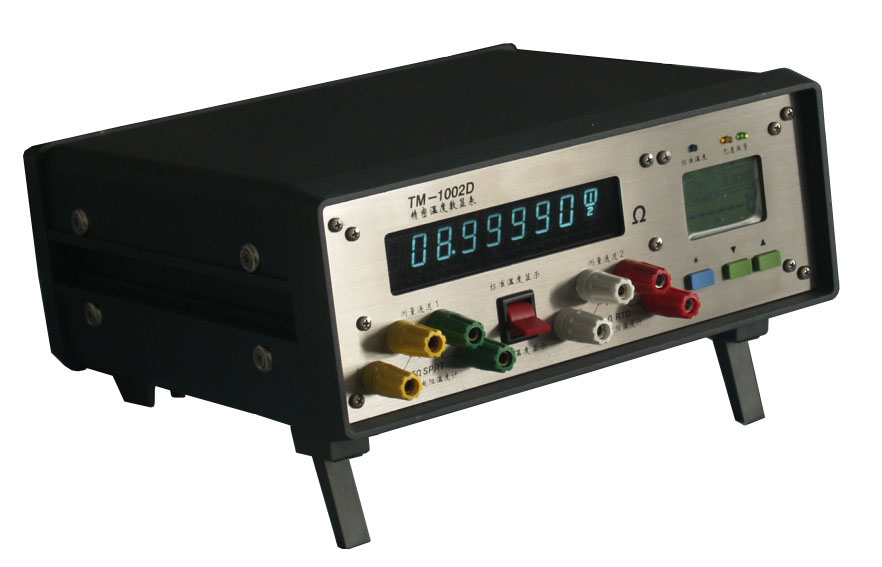

The Direct Current Low Resistance Meter, also known as a micro-ohmmeter, ohmmeter, or DC Resistance Tester, utilizes microprocessor technology and performs four-wire testing for safety, precision, and reliability. It is primarily used for measuring the conductor resistance of cables, contact resistance of switches, connectors, and relays, resistance of coils, motors, transformer windings, and metal rivet resistances. It also tests the interconnection resistance between metal components, low-value resistances, resistance of conductors between ground grid and ground electrodes, and contact resistance.

The Direct Current Low Resistance Meter is composed of a main unit, monitoring software, test cables, communication lines, etc. The main unit features a large screen.LCDDisplay, at a glance. Capable of storing.500Compile data, resistance measurement range:0.001mΩ～300.0KThe master software offers functions such as reading, reviewing, saving, and generating reports for historical data.

Feature

Primarily used for measuring wire resistance in cables, contact resistance of switches, connectors, and relays, resistance of coil windings, motors, and transformers, as well as metal rivet and inter-metallic bonding resistances, testing of low-value resistances, resistance testing between earth grid electrodes and connecting conductors, and contact resistance testing.
