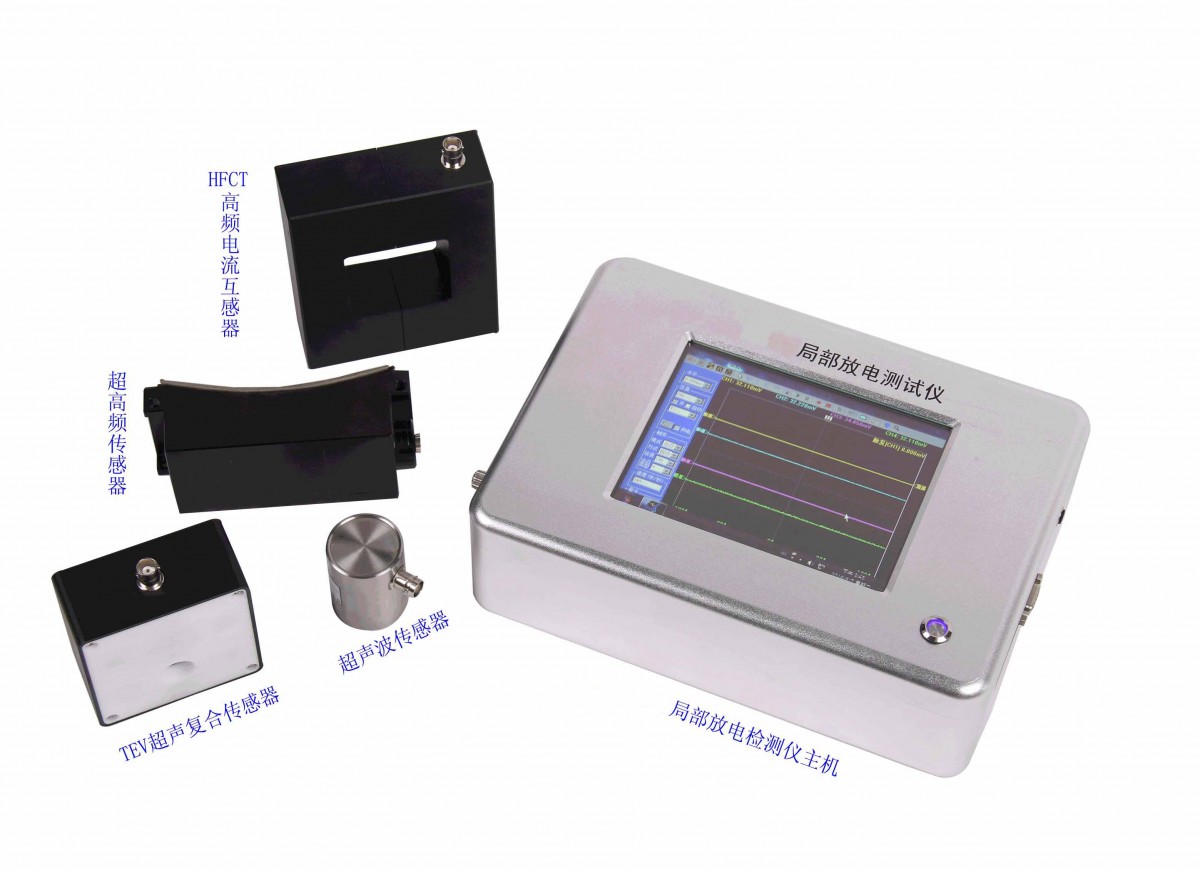

Portable Partial Discharge Detector

Terms of Use

1. Ambient Temperature:-25℃~+70℃；

2. Ambient Humidity:Relative humidity not exceeding95%；

3. AC Power SupplyVoltage amplitude deviation allowanceLess than±10%FrequencyPermission granted.DeviationLess than±1%，Harmonic ContentLess than5%；

Performance Requirements

Test Frequency Band: The test frequency band should cover as much of the frequency range for various partial discharge signals that may occur internally in GIS, typically ranging from 300 MHz to 3 GHz.

2. Sensitivity: The detection device can measure discharge signals with a discharge amount of no less than 10pC and no more than 5000pC, with the detection results within the measurement range effectively reflecting the changes in the local discharge intensity.

Insulation Performance:InspectionEquipmentThe charged circuit and the metallic housing, as well as the electrical disconnections between them.Partial circuitsInsulation resistance should not be less than20MΩ。InspectionEquipment Power SupplyTerminalWith signal terminalsThe ground should be able to bear.1min/2kVNo Chinese content provided.No Chinese content provided. Please provide the text to be translated.5kVStandard Lightning Wave（1.2/50us）

4. Protective Performance:Portable Test DeviceProtective performance should comply withGB/T 4208StandardRegulationsIP51Please provide the Chinese content you would like to have translated.；

5.Seismic Performance:InspectionEquipment shouldThe ability to withstandGround-level acceleration0.25gPlease provide the Chinese content to be translated into American English.Ground Vertical Acceleration0.125gVibration Test Conducted.（gFor gravitational acceleration,9.8m/s²）

6. Electromagnetic Compatibility Performance: Shall meet the following requirements.

1) Radiation Electromagnetic Field Interference: Should WithstandGB/T14598.9Severe grade as specified4Level Up

2) Interference from rapid transient pulse groups: Should be capable of withstandingGB/T14598. 13Severe grade as specified in the standard3   Level.

3) Electrostatic Discharge Interference: Should WithstandGB/T14598.14Severe grade as specified4No Chinese content provided.

4) Surge Protection: Should Be Able to Withstand GB/T17626.5Severe grade as specified4Level up.

5) Interference Resistance of Power Frequency Magnetic Field: Should WithstandGB/T17626.8Severe grade as specified4Level.

6) Damping Oscillation Magnetic Field for AntijammingPlease provide the Chinese content you would like translated into American English.No Chinese content provided.GB/T 17626.10Severe grade as specified4Level。

7.Interface Security Requirement: The configuration of external sensors for the detection device should not interfereGISThe sealing performance of the disk insulator structure and the grounding and current conduction performance of the housing. The installation of external sensors should, in principle, not require disassembly.GISAll components must meet the necessary safety requirements for the installation of detection equipment. This includes: having an adequate safe distance from nearby high-voltage live components and areas; providing effective protection against lightning, overvoltage from switch operations, and rising ground potential; not causing any safety hazards related to power supply, electromagnetic compatibility, and network communication, and not affecting the safe operation of other systems within the substation.
