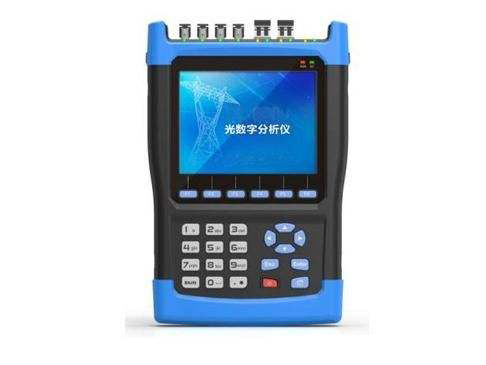

Portable Multimeter

1）MTP6000ESupportIEC61850Communication protocols for the process layer and interval layer in intelligent substation can connect to any network node between the process layer and interval layer of a digital substation, receiving or sending network messages.NRI-GSZSupports the following protocol standards:IEC61850-9-2、IEC61850-9-1、IEC60044-8（FT3No content provided for translation.FT3ExpansionGOOSE、 IRIG-B、IEEE1588And can import and parse standardSCLConfiguration File

  2Supports simultaneous reception of two optical serial port messages, or simultaneous two-way transmission and reception of optical network port messages.

  3Support for common sampling ratesSMVMessage Transmission and Reception:4kHz、12.8kHz；

  4Received and SentIEC61850-9-1/2At the moment of transmitting digital messages, a single frame messageASDUNumber1~8Optional

  5Receiving and sendingIEC60044-7/8（FT3At the moment of digital message transmission, the data rate is2.5Mbps/5Mbps/10MbpsOptional

  6Receiving and sendingIEC60044-7/8（FT3Expand) transmission rate when transmitting digital messages5Mbps/10MbpsOptional

  7SupportSMV、GOOSEMessage Monitoring can perform statistics on anomalies such as frame loss and incorrect sequencing. It features remote signaling and measurement monitoring capabilities, with remote measurements available in formats like tables, waveforms, vector graphs, and sequence charts.

  8Support2 A pending phase comparison unit's data undergoes a secondary phase comparison, which may also involve data from different channel groups within a single unit. Select a voltage path as a reference and display the magnitude, phase, frequency, and differences in magnitude and phase of the pending phase comparison voltage groups as a reference for phase comparison. This can verify the correctness of the phase sequence and RMS values on the same side, as well as the correctness of the RMS values and phase relationships on different sides.

  9Supports DC method testing for polarity of optical digital voltage transformers, current transformers, and transformers.

  10Support for message monitoring and message waveform recording (standard)pcapFormat);

  11Simulate merging unitsMUOutputIEC61850-9-1/2、IEC60044-7/8Optical digital message, testing the optical digital relay protection device. Supports filtering and receiving multiple control blocks simultaneously, and supports voltage and current output testing.8Road voltage8The road current can be mapped to multiple sampling value blocks for simultaneous output.

  12SupportSMVMultiple states outputted in a pre-set sequence for testing, with a large number of states achievable.10 The test results are clear and straightforward.GOOSEActions are listed in the format of experimental results.

  13SupportIRIG-BAndIEEE 1588Offering time synchronization and the ability to view the clock source time.

  14Support for optical power measurement, measurement range:-31dbm~-14dbmMeasurable light wavelengths:1310nm；

  15Support for substation full-site system configuration filesSCLImport the necessary device instance configuration information to complete the test configuration. You can import one or more substation full-site configuration files toSDOn the storage card, the user does not need to configure the device upon use.APPID、MACAddress and channel information are set manually.

  16Large-screen graphic color LCD display, intuitive and user-friendly interface menu, detailed and clear information, easy-to-use button operations.

  17Battery-powered for convenient portability, it can be used normally after a single full charge.6Hourly rates.
