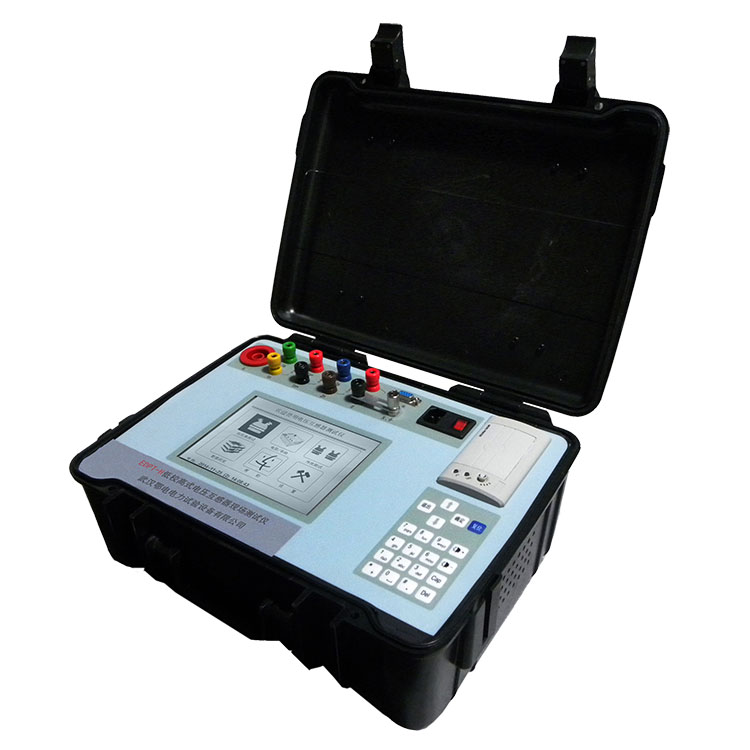

Portable Voltage Transformer Analyzer

Portable Voltage Transformer Analyzer Is itTraditional transformer testing devices based on voltage regulators, step-up transformers, and series resonanceBased on extensive user feedback, thorough market research, and in-depth theoretical study.Research and DevelopmentOur new generation of innovationTypePTTest Instruments. The device features high-performanceDSP + FPGA and advanced ARM industrial computersAdvanced manufacturing processes ensure stable and reliable product performance, comprehensive functionality, high automation levels, and efficient testing, placing the company at the forefront domestically.Please provide the Chinese content that needs to be translated into American English.. FirstLevel, it is.ElectricityIndustry UseNo Chinese content provided, please provide the news content to be translated.Professional Test Instruments for Transformers

1.1 Key Technical Features

1. A single instrument can achieve capacitiveError testing for PT (CVT) and electromagnetic PTs can be conducted without the need for resonance step-up devices, standard voltage transformers, load boxes, and calibration instruments, significantly reducing the workload for on-site calibration error measurements.

2. Wide range of testing, capable of testing voltage levels for6kV to 800kV Electromagnetic Voltage Transformers

3. No Chinese content provided.The 0.01-grade standard voltage transformer utilizes the difference measurement method to test the low-voltage error of the transformer. By employing frequency conversion testing technology, the excitation characteristic curve within the operating range is obtained. Combined with the error values from low-pressure actual measurements, the extrapolation method is used to analyze the error throughout the entire working range of the transformer. The instrument's testing grade can reach 0.05. During the testing process, the generated test voltage does not exceed 3kV, ensuring the safety of on-site testing.

4. Testing wiring is simple, and the operation is easy to learn. Just follow the guided prompts to effortlessly complete the transformer calibration, significantly enhancing testing efficiency.

5. Features intelligent judgment of external wiring conditions, prompting for wiring errors, ratio, and polarity errors, etc.

6. Automatically round test data and determine if it exceeds the tolerance; data that exceeds the tolerance is displayed in reverse color, making the data characteristics of the transformer intuitive and clear.

7. Large-scale storage can accommodate up to a significant amount of on-site test data.10,000.

8. Utilizing aluminum profile enclosures, the product boasts excellent anti-interference capabilities while ensuring the safety of both operators and equipment during high-voltage field tests.

9. Utilizing high-resolution large-sized8-inch true-color LCD display, crystal clear in outdoor bright light, with touch screen for easy and quick operation.
