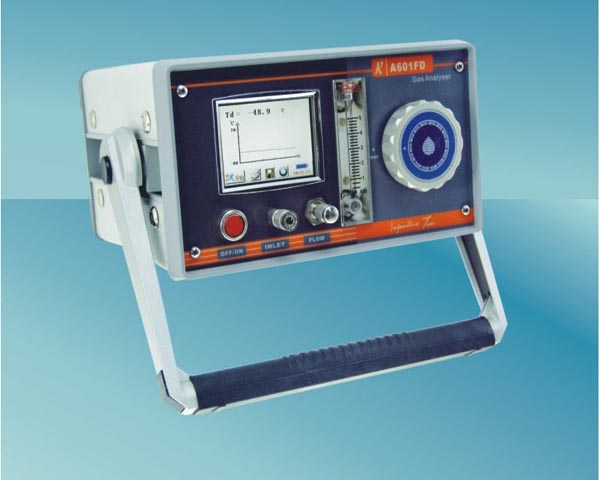

Portable SF6 Micro Hygrometer

Technical Features

(1) Portable Design: The instruments are lighter, making them easier to carry and use.

(2) Measure Fast: The instrument is ready for immediate measurement upon startup, quickly providing humidity readings without delay.

(3) Efficient and Gas-Saving: The consumption of gas during the measurement is only2L（101.2kPaRight.

(4) Self-Locking Connector: Equipped with genuine imported German self-locking heads, offering safety and reliability with no leakage.

(5) Data Storage: Designed for high capacity, capable of storing multiple items50Generate test data.

(6) Display Clarity: Direct Display of Dew Point and Trace MoistureppmAmbient temperature, humidity, time and date, battery level, and other relevant content.

(7) Built-in Power Supply4AhRechargeable lithium-ion battery, a single charge for continuous operation10Hour.

Measurement Method

1.ConnectSF6Equipment

Ensure the threaded end of the measuring pipeline is securely connected to the switch joint, tighten with a wrench, and close the needle valve at the other end of the measuring pipeline; then insert one end of the quick connector on the test pipeline into the sampling port of the micro-water meter; connect the exhaust pipeline to the exhaust outlet. Afterward, connect the switch joint toSF6The electrical equipment measurement interface is properly connected and tightened with a wrench.

2.Check battery power

This instrument is recommended to be powered by AC first. When using DC power, please check the battery level displayed at the upper right corner. If the level is below approximately...20Please power off and recharge before continuing to use.

3.Measurement begins

First, fully open the needle valve on the pipe with the instrument, then adjust the flow rate using the flow valve on the panel, and set the flow rate to0.5L/MLeft, start measuringSF6Drop Point.The.A device's time measurement requirement5～10Minutes, then every piece of equipment requires3～5Minute.

4.Storing Data

Upon completion of equipment measurement, the data can be saved within the instrument.Press the "OK" button to bring up the operation menu; specific operation methods are detailed in the following section.

5.Measure other equipment

After one device takes a measurement, close the needle valve on the measurement pipeline and the regulating valve on the micro-water meter. Remove the adapter fromSF6Remove from the electrical equipment. If you need to measure other equipment, continue with the above steps to measure the next device.

6.Measurement completed

After all equipment measurements are completed, turn off the micro-water meter power.
