Transformer Impedance Tester

Transformer Short-Circuit Impedance Testers, Impedance Voltage Testers, Short-Circuit Impedance Testers, Transformer Impedance Voltage Testers, Low-Voltage Short-Circuit Impedance Testers

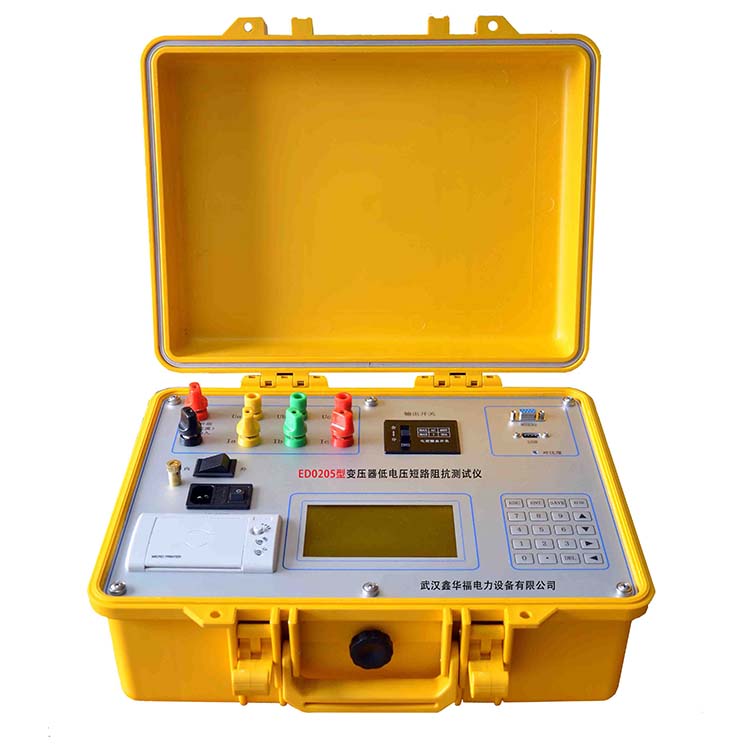

ED0205The Short Circuit Impedance Tester, also known as the Transformer Impedance Voltage Tester, Transformer Short Circuit Impedance Tester, and Low Voltage Short Circuit Impedance Tester, is capable of precisely measuring a series of parameters for various transformers, including no-load current, no-load losses, short-circuit losses, and impedance voltage.

ED0205The Transformer Short Circuit Impedance Tester is designed for precise measurement of a series of parameters, including no-load current, no-load loss, short-circuit loss, and impedance voltage, for various transformers. ED0205The Transformer Short Circuit Impedance Tester boasts key features including a color LCD display, automatic waveform distortion correction, temperature correction, voltage correction (no-load test under non-rated voltage), and current correction (short-circuit test under non-rated current conditions, using rated current).20%-70%Short-circuit test additional loss correction: Simply input the correction index into the instrument based on the transformer type, and the corrected result will be automatically calculated. The device allows for the connection of current transformers and voltage transformers to expand the measurement range, with the capability to measure voltage up to...750VAuto-switching, large-screen display, and touch buttons make operation more convenient, making this maintenance and testing instrument an essential tool for transformer manufacturers and power maintenance companies.

Short-Circuit Impedance Tester, also known as

Transformer Loss Parameter Tester, Transformer No-Load Tester, Transformer No-Load and Load Characteristic Tester, Transformer Loss Tester, Transformer No-Load and Load Tester, No-Load Current Tester, No-Load Loss Tester, Transformer Short-Circuit Impedance Tester, Zero Sequence Impedance Tester

Short-Circuit Impedance Tester Function

1Transformer Short-Circuit Impedance Test Instruments can measure the no-load current, no-load losses, impedance voltage, load losses, and zero-sequence impedance of various transformer types.

2The system can automatically perform temperature calibration, voltage calibration (no-load test under non-rated voltage), current calibration (short-circuit test under non-rated current conditions), direct resistance calibration. Operators only need to input the calibration index tester based on the transformer type, and the system will automatically calculate the corrected results.

3Voltage circuit wide limit: voltage can be measured up to750VNo need to shift gears to ensure accuracy. The tester itself will not be damaged due to incorrect voltage gear selection.

4Large screen, full Chinese menu and operation prompts for friendly human-computer dialogue, conductive rubber keys for easier operation, and a high-brightness LCD display that adapts to all seasons.

5Users can print out the test results at any time using the mini printer.

6All test results from the transformer short-circuit impedance tester can be saved in a recordable format for future reference.
