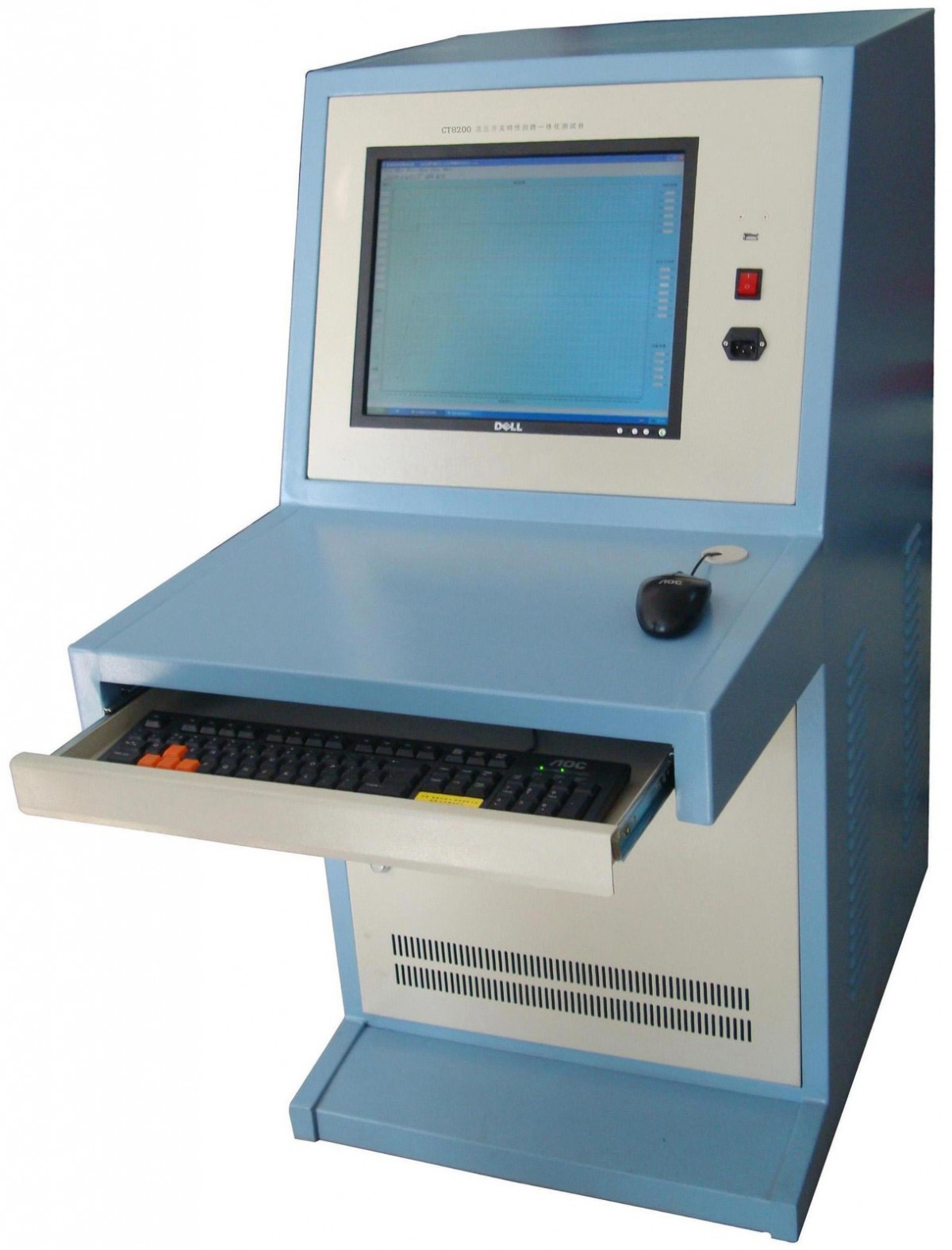

Transformer Comprehensive Test System

I. Overview:

With the development of smart grids, the increase in transmission and transformation projects, and the continuous expansion of the power grid, the number and capacity of power transformers online are also rising. Our company's developed fully automatic comprehensive testing system for transformers is suitable for power supply and distribution systems, transformer manufacturing plants, industrial and mining enterprises, energy-saving supervision departments, and for determining the no-load current, no-load losses, impedance voltage, load losses, DC resistance, and voltage ratio of power transformers, among other electrical parameters. It implements state diagnostics, ensures safe operation, reduces losses, and saves energy, providing real data for transformer monitoring or manufacturing. The system tests by PCThe machine controls the entire testing process, handles data processing, operates fully automatically, and is highly integrated, significantly improving efficiency.

Objective:

1Available for capacity63000KvA、110KvAnd the following oil-immersed transformers (including)S9\S11\S13And amorphous alloy transformers.

2Available to meet capacity requirements31500KvA、35KvDry-type transformers and below.

3Available for capacity6300KvA、10KvMining explosion-proof transformers and below.

4Special transformers (please specify detailed capacity and voltage grade upon ordering).
