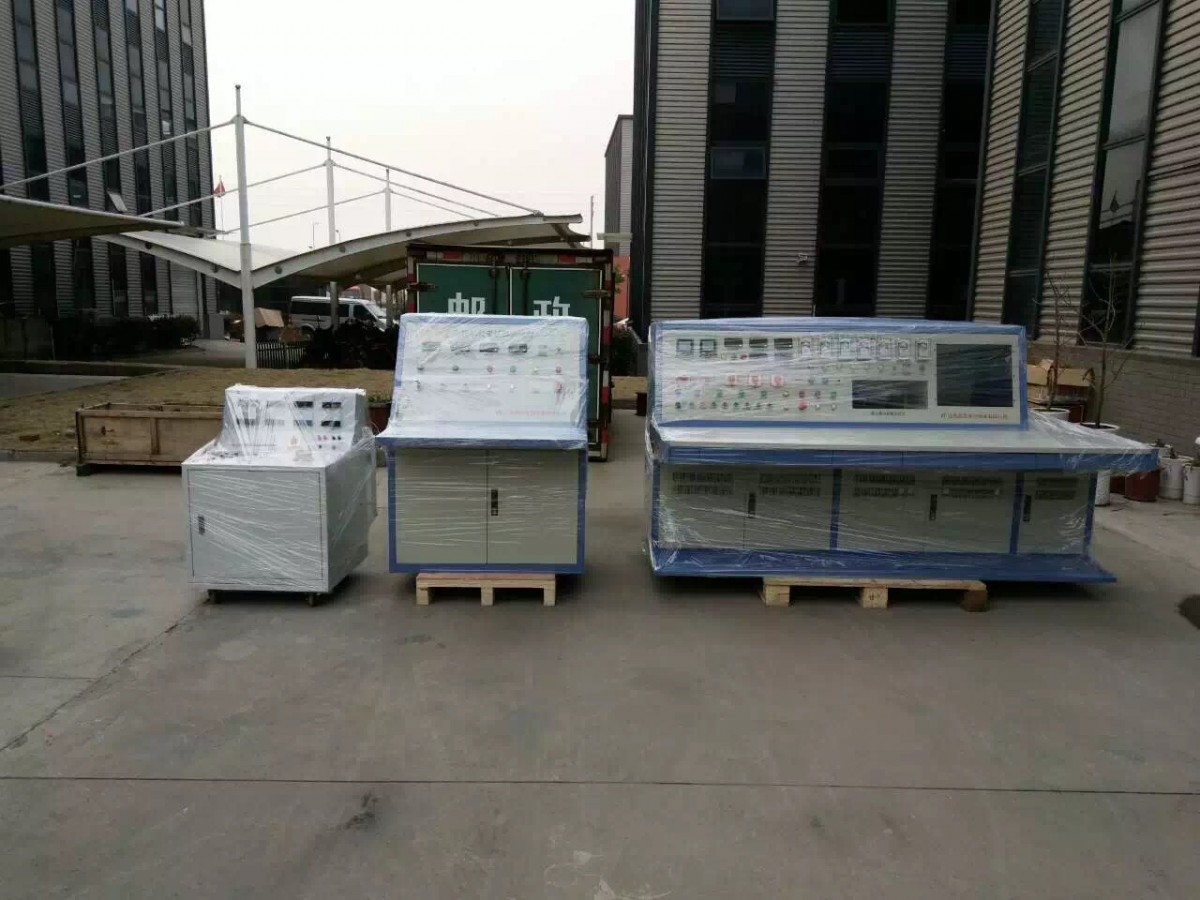

Transformer Comprehensive Test Bench

ED0202The Comprehensive Test Bench for Transformer is an integrated testing platform that combines numerous testing instruments, specifically designed for transformer-related test projects.

        ED0202The Comprehensive Test Bench for Test Transformers is primarily designed for testing the capacity, no-load characteristics, and load characteristics of power transformers and distribution transformers; direct resistance; ratio and group; as well as the frequency and double-frequency withstand tests for small capacity transformers, meeting2500KVAThe following electrical transformer tests, ED0202The test transformer comprehensive testing bench is designed with预留 external transformer interface for easy capacity expansion. ED0202The measurement section of the integrated test bench for transformer testing is controlled by a single-chip microcomputer, with digital display of test data sampled and displayed synchronously by the microcomputer. ED0202The Integrated Test Bench for Test Transformers eliminates errors caused by separate readings of voltage, current, and power meters, and manual calculations in traditional testing methods. It has been widely used in power metering supervision authorities, power monitoring centers, and power testing units.  ED0202The integrated test bench for the test transformer encompasses a variety of testing projects, requiring customization tailored to the customer's usage requirements and technical specifications.

Instrument Alias

Transformer Comprehensive Test Bench, Test Transformer Comprehensive Test Bench, Transformer Test Bench, Transformer Comprehensive Characteristic Test Bench, Transformer Characteristic Test Bench, Transformer Test Bench, Multi-functional Power Transformer Test Bench, Transformer Comprehensive Tester, Test Transformer Comprehensive Tester, Electric Power Test Transformer Comprehensive Test Bench

Instrument Function

1The comprehensive test bench for transformer testing utilizes a large-screen backlit LCD display, allowing for easy operation via computer or buttons, with clear and intuitive categorization of the display.

2The product meets the requirements for various tests on power transformers, including DC resistance testing, ratio and group testing, no-load loss testing, load loss testing, AC withstand voltage testing, and induction withstand voltage testing, among others.

3Voltage, current digital or pointer meters for direct reading; print output of loss, ratio, and direct resistance test results.

4、 ED0202The integrated test bench for transformer comprehensive testing has passed the withstand voltage test, overcurrent acoustic and light alarm, and timing test.
