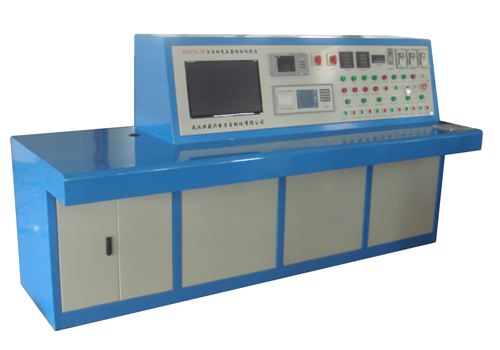

Transformer Comprehensive Testing System

ED0202The Comprehensive Test Bench for Transformer is a transformer testing platform that integrates numerous testing instruments, specifically designed for the transformer's targeted testing projects.

        ED0202The Comprehensive Test Bench for Test Transformers is primarily designed for testing the capacity, no-load characteristics, and load characteristics of power transformers and distribution transformers; direct resistance; transformation ratio and winding groups; as well as the frequency and double-frequency withstand tests for small capacity transformers, meeting2500KVAThe following power transformer tests, ED0202The integrated test bench for transformer testing is designed with an external transformer interface, facilitating the addition of capacity. ED0202The measurement section of the integrated test bench for transformer testing is controlled by a single-chip microcomputer, with the digital display of test data sampled and displayed synchronously by the microcomputer. ED0202The integrated test bench for test transformers eliminates errors caused by the separate reading of voltage, current, and power meters, and manual calculations in traditional testing methods. It has been widely used in electric power measurement supervision bureaus, power monitoring centers, and electric power testing units.  ED0202The integrated test bench for the test transformer encompasses numerous testing items, requiring customization to meet the specific usage requirements and technical parameters of the client.

Instrument Alias

Transformer Comprehensive Test Bench, Test Transformer Comprehensive Test Bench, Transformer Test Bench, Transformer Comprehensive Characteristic Test Bench, Transformer Characteristic Test Bench, Transformer Test Bench, Multi-functional Electric Power Transformer Test Bench, Transformer Comprehensive Tester, Test Transformer Comprehensive Tester, Electric Power Test Transformer Comprehensive Test Bench

Instrument Function

1The comprehensive test bench for transformer testing utilizes a large-screen backlit LCD display, allowing for operation via computer or keypad with clear and intuitive classification display, making it easy to operate.

2Our company's news: Our products meet the requirements for various tests of power transformers, including DC resistance testing, ratio and group testing, no-load loss testing, load loss testing, AC withstand voltage testing, and induction withstand voltage testing.

3Voltage, current digital display meters or pointer meters for direct reading; print out test results for loss, transformation ratio, and direct resistance.

4、 ED0202The integrated test bench for transformer withstand voltage tests has passed overcurrent, sound, and light alarm, as well as timing tests.
