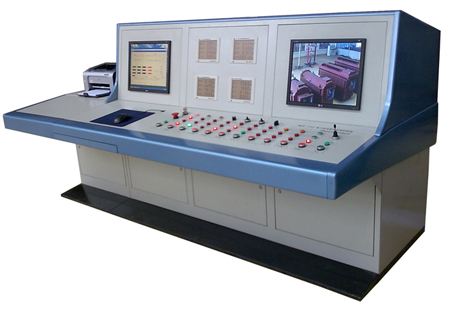

Transformer Comprehensive Test Bench

ED0202The comprehensive transformer testing bench integrates various testing instruments into one platform, specifically designed for transformer-specific testing projects.

ED0202The Comprehensive Test Bench for Test Transformers is primarily designed for testing the capacity, no-load characteristics, and load characteristics of power transformers and distribution transformers; direct resistance; transformation ratio and winding groups; as well as the frequency and multiple-frequency withstand tests for small capacity transformers, meeting2500KVAThe following power transformer tests, ED0202The test transformer comprehensive test bench is pre-equipped with an external transformer interface, facilitating the addition of capacity. ED0202The measurement section of the integrated transformer testing bench is controlled by a microcontroller, with digital displays and other test data sampled and displayed synchronously by the microcontroller. ED0202The Comprehensive Test Bench for Test Transformers eliminates errors caused by separate readings of voltage, current, and power meters and manual calculations in traditional testing methods. It is widely used in the Power Metering Supervisory Bureau, Power Monitoring Centers, and power testing units.  ED0202The comprehensive test bench for test transformers features numerous testing items, requiring customization to meet the specific usage requirements and technical parameters of the customer.

Instrument Alias

Transformer Comprehensive Test Bench, Test Transformer Comprehensive Test Bench, Transformer Test Bench, Transformer Comprehensive Characteristic Test Bench, Transformer Characteristic Test Bench, Transformer Test Bench, Multi-functional Power Transformer Test Bench, Transformer Comprehensive Tester, Test Transformer Comprehensive Tester, Power Test Transformer Comprehensive Test Bench

Instrument Function

1The comprehensive test bench for transformer testing utilizes a large-screen backlit LCD display, allowing for easy operation via computer or buttons, with clear and intuitive classification display.

2Our company's products can meet the requirements for various tests on power transformers, including DC resistance testing, ratio and group testing, no-load loss testing, load loss testing, AC withstand voltage testing, and induction withstand voltage testing.

3Voltage, current digital indicator or pointer meter direct reading, power loss, transformation ratio, and direct resistance test results printed output

4、 ED0202The integrated test bench for transformer withstand tests has passed the overcurrent acoustic and optical alarm and timing tests.
