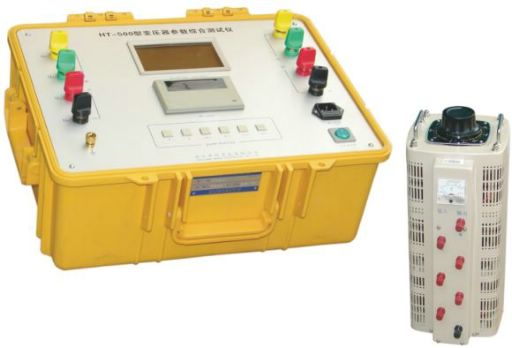

Transformer Comprehensive Parameter Tester

The Transformer Loss Parameter Tester offers simple operation, easy wiring, and accurate and reliable data compared to traditional measurement techniques. It directly displays all the measurement data you care about, eliminating the need for manual calculations, significantly saving time in transformer loss measurements, enhancing work efficiency, and reducing labor intensity.

Features and Benefits

1.Measure transformer parameters such as no-load losses, load losses, zero-sequence impedance, voltage RMS, voltage average, current, power, power factor, frequency, and low-voltage impedance measurement of the main transformer (checking winding deformation).

2.Automatic waveform distortion correction, voltage calibration, current calibration, temperature calibration, no manual calculations required.

3.The instrument can directly measure within its allowed measurement range. For measurements outside this range, a voltage transformer and a current transformer can be externally connected.

4.This instrument boasts high measurement accuracy, excellent repeatability, and allows for direct storage of measurement results. It features a non-volatile internal memory, ensuring long-term retention of data and enabling easy access at any time.

5.The unique touch screen with Chinese prompt menus allows users to select items by tapping, immediately entering the corresponding function test mode for intuitive and convenient operation.

6.Please provide the Chinese content to be translated.RS-232The interface is compatible with external printers or computer communication. The test wiring is simple and clear, with color-coded connections for easy and quick assembly.

7.Battery-Free Calendar with Clock Function
