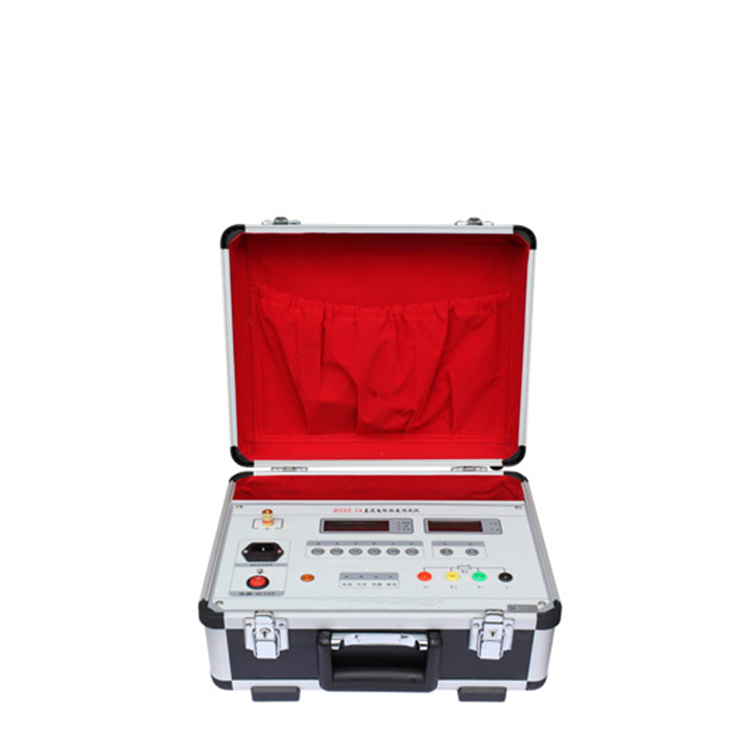

Transformer Direct Resistance Tester

The Transformer Direct Resistance Tester is a new testing device that integrates magnetic aid testing, three-phase testing, and degaussing functions. It is specifically designed for the direct resistance measurement of large-scale power transformers. Below is a detailed description of its main features:

Easy-to-Reach Customer Service

All high and low voltage current potential test wires are connected to the transformer at once, without the need to change or adjust the test wires during the testing process.Extreme.Dirt Streamline the testing process, enhancing work efficiency.

Three-phase Test Function

For the star connection winding, the tester can simultaneously conduct three-phase tests.A0、B0、C0The resistance testing, significantly shortened the time required for the test.

During the three-phase test, first test individually.A0Data was collected, followed by simultaneous three-phase testing, which resolved the issue of untestable neutral lead resistance, resulting in test data that is closer to the actual single-phase test values.

Automatic Magnetization Technology:

During low-voltage testing of transformers with three-phase and five-column internal angle connections, the instrument employs an automatic magnetizing method. Compared to traditional high-current testing, this method offers faster testing speeds, enhancing efficiency.

No Chinese content provided, so no translation is needed..FaceData Display and Calculation:

The tester can display and print all test data for the transformer's high, medium, and low voltage windings, and automatically calculate the three-phase unbalance.

Users can also choose to print the resistance values adjusted to the rated temperature, facilitating subsequent data analysis and comparison.

Reverse Voltage Protection Feature:

The instrument features comprehensive reverse-potential protection, ensuring the safety of both operators and equipment during testing, while minimizing equipment damage caused by misoperation.

High-Capacity Data Storage:

The instrument's interior canYong.AvailableStore up to200The test data (expandable) meets the long-term usage needs of users.

Additionally, support for data storage on USB flash drives is included, making it convenient for users to import test data into computers for further processing and analysis.

Superior Performance and Portability:

The instrument features a wide working temperature range, high precision measurement, and excellent shock resistance and anti-interference capabilities, ensuring stable operation in various environments.

Compact and portable, it's perfect for on-site testing and mobile work.

In summary, the Transformer Direct Resistance Tester stands out as an ideal device for measuring the direct resistance of large-scale power transformers, thanks to its user-friendly operation, efficient testing functions, comprehensive data processing, and excellent performance.
