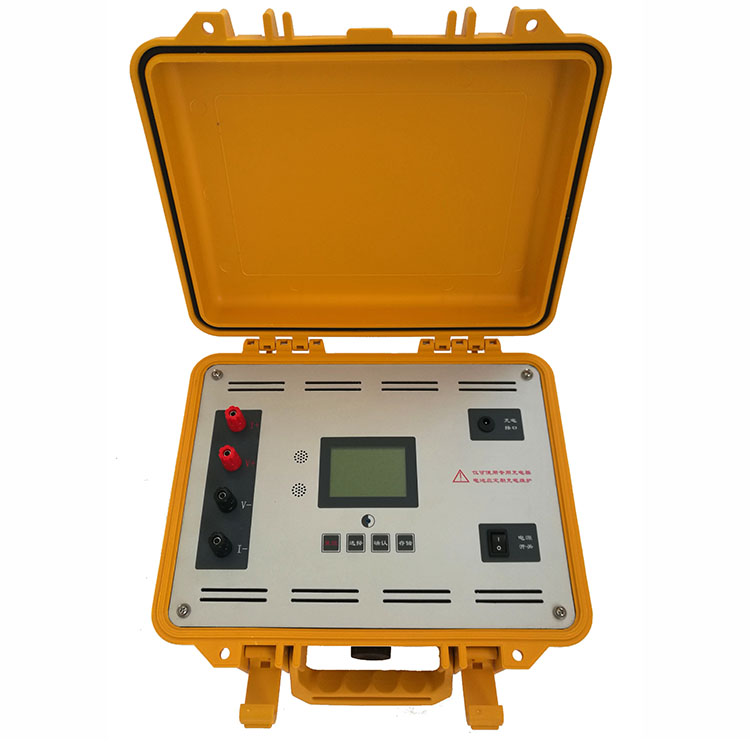

Transformer Direct Resistance Meter

I. Key Features

l All high and low voltage current potential test wires are connected to the transformer at once, eliminating the need to reroute test wires during the testing process.

l For the star connection winding test, the instrument can adopt a three-phase simultaneous testing method.A0、B0、C0The phase resistance, saving testing time.

l During the low-voltage testing of a transformer with three-phase, five-column internal corner connection, the instrument employs an automatic magnetizing method, which is faster than using high currents directly.

l Present all test data for the high and low voltage windings of display and printing transformers, automatically calculate the three-phase unbalance, and print the resistance values converted to the rated temperature.

l During the three-phase test, the initial testing is conducted.A0Our data shows that simultaneous three-phase testing has resolved the issue of not being able to test the neutral point lead resistance during simultaneous three-phase tests, resulting in test data that is closer to single-phase test values.

l Comprehensive reverse voltage protection features.

l The instrument's interior canForever.LongStorage Test Data200Line (expandable), and can also use a USB drive to store data for easy import and processing on computers.

l The instrument features a wide operating temperature range, high precision, shock resistance, anti-interference capabilities, and easy portability.

II. Main Technical Indicators and Usage Conditions

1Technical Indicators

1Test Current:

   Three-Phase Test:20A＋20A、10A＋10A、5A＋5A、1A＋1A

   Phase Testing:40A、20A、10A、5A、1A、0.2A

Scope of Testing:

40A：100.0uΩ~0.5Ω20A：500.0uΩ~1Ω

10A：1mΩ~2Ω5A：10mΩ~4Ω

1A：100mΩ~20Ω0.2A：1Ω~100Ω

20A+20A200uΩ~0.3Ω10A+10A500uΩ~0.6Ω

5A+5A10mΩ~1.5Ω1A+1A100mΩ~7Ω

3Please provide the Chinese content to be translated.Resolution:0.1uΩ

4Accuracy: ±(Reading)×0.2%+2Please provide the Chinese content to be translated into American English.

5Dimensions:440mm×330mm×380mm

6Weight: 12kg

2Terms of Use

1Ambient Temperature: －10℃  ～ 50℃   Ambient Humidity: ≤ 85％RH

2Work Power Supply: AC220V ± 10%  Power Frequency: （50±1）Hz
