Transformer Direct Current Resistance Test

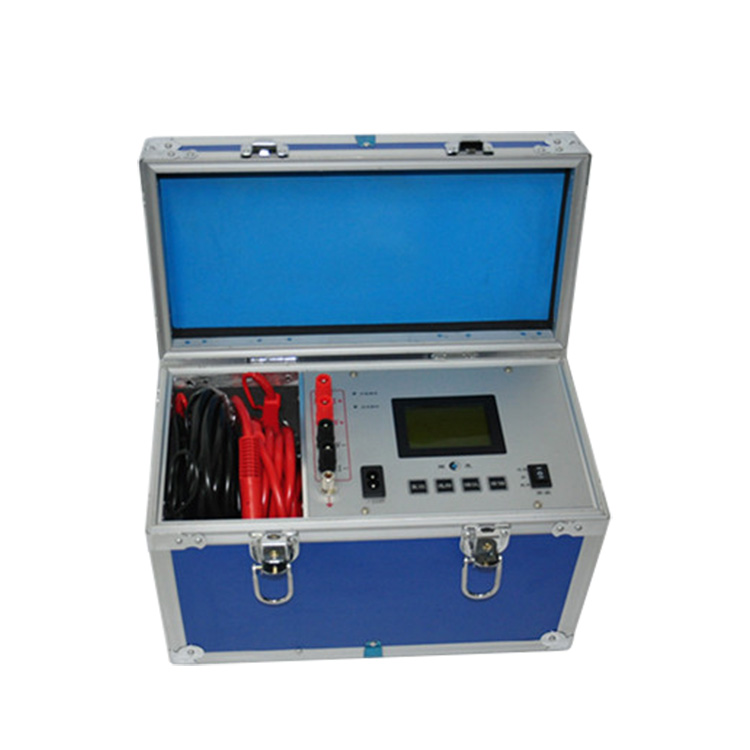

The Transformer Direct Resistance Tester is a new testing device that integrates magnetic aid testing, three-phase testing, and demagnetization functions. It is specifically designed for the direct resistance measurement of large power transformers. Below is a detailed description of its main features:

Convenient Contacting

All high and low voltage current potential test wires are connected to the transformer at once, without the need to replace or adjust the test wires during the testing process.Extreme.Dati has streamlined the testing process, enhancing work efficiency.

Three-Phase Test Function

For star-wiring configurations, the tester can simultaneously conduct three-phaseA0、B0、C0Our resistance testing has significantly reduced the time required for the tests.

During the three-phase test, conduct individual tests first.A0Data was collected, followed by a three-phase simultaneous test, thereby resolving the issue of untestable neutral lead resistance, resulting in test data that is closer to the actual single-phase test values.

Automatic Magnetization Technology:

During the low-voltage testing of a transformer with a three-phase five-column internal angle connection, the instrument employs an automatic magnetic assistance method, which, compared to the traditional high-current testing, offers a faster testing speed and improves testing efficiency.

All.No Chinese content provided, please provide the news content to be translated.Data Display and Calculation:

The tester can display and print all test data for transformer's high, medium, and low voltage windings, and automatically calculate the three-phase unbalance degree.

Users can also choose to print the resistance values converted to rated temperature, facilitating subsequent data analysis and comparison.

Reverse Voltage Protection Feature:

The instrument features comprehensive reverse voltage protection, ensuring the safety of both testers and equipment during testing, and reducing equipment damage caused by misuse.

High-Capacity Data Storage:

The instrument's interior canPlease provide the Chinese content that needs to be translated into American English..LongStore up to200The testing data (expandable) meets the long-term usage requirements of our users.

Additionally, the system supports data storage on USB flash drives, facilitating users to import test data into computers for further processing and analysis.

Superior Performance and Portability:

The instrument boasts a wide operating temperature range, high precision measurement, and excellent vibration resistance and anti-interference capabilities, ensuring stable operation in various environments.

Compact and portable, it's ideal for on-site testing and mobile work.

In summary, the Transformer DC Resistance Tester stands out as an ideal device for measuring the DC resistance of large power transformers, thanks to its user-friendly operation, efficient testing capabilities, comprehensive data processing, and superior performance.
