Transformer Oil Dielectric Loss Tester

Product Overview

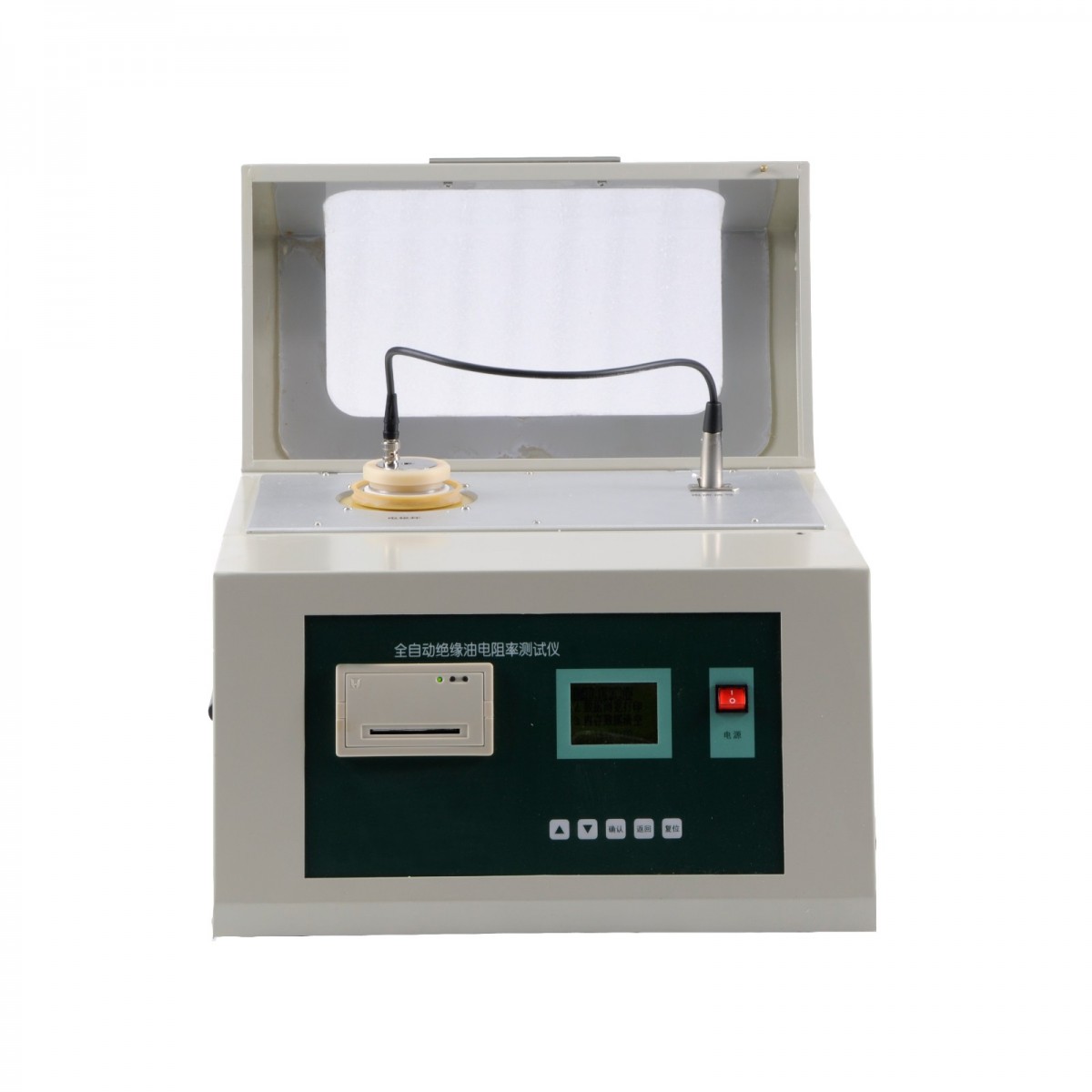

ED6000The Type Integrated Precision Oil Dielectric Loss and Volume Resistivity Tester is a high-precision instrument with an integrated structure designed for testing the dielectric loss angle and volume resistivity of insulating oils and other liquid insulating media. It internally incorporates key components such as the dielectric loss oil cup, temperature controller, temperature sensor, dielectric loss test bridge, AC test power supply, standard capacitor, high-impedance meter, and DC high-voltage source. The heating section employs the advanced high-frequency induction heating method, which offers benefits such as non-contact between the oil cup and the heating element, even heating, rapid speed, and easy control. The AC test power supplyAC-DC-ACThe conversion method effectively avoids the impact of fluctuations in mains voltage and frequency on the accuracy of dielectric loss testing, even when the generator is in use. The internal standard capacitor isSF6The inflatable three-terminal capacitor maintains consistent precision over time, as its dielectric loss and capacitance are unaffected by environmental factors such as temperature and humidity.

Product Features

The instrument features full digital technology internally, complete with intelligent automated measurement, multiple measurement modes, and is equipped with a large screen.320×240Touchscreen monitor, full Chinese menu, with Chinese prompts for every step, test results can be printed out, operators can master the operation without professional training.
