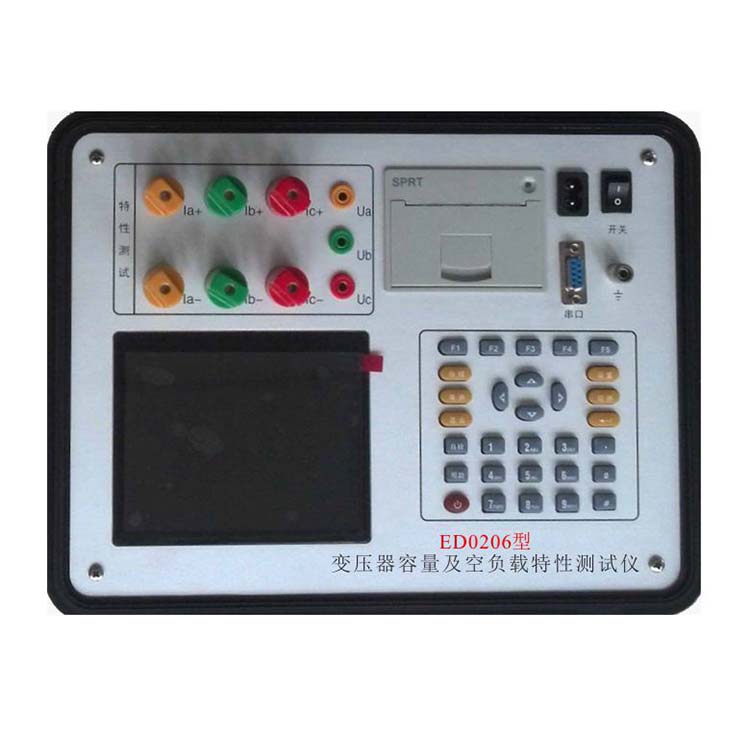

Transformer Characteristic Capacity Tester

Feature Highlights

1Transformer Capacity and No-load Characteristic Tester (Color Screen) can measure the no-load current, no-load loss, impedance voltage, load loss, and zero-sequence impedance of various transformer types.

2The Transformer Capacity and No-Load Characteristic Tester (Color Screen) can automatically perform waveform distortion correction, temperature correction (providing both simple temperature correction and additional loss correction), voltage correction (no-load test under non-rated voltage), and current correction (short-circuit test under non-rated current conditions). It is particularly suitable for units that do not have the conditions for performing short-circuit tests on transformers of larger capacities.

3Transformer Capacity and No-load Characteristic Tester (Color Screen) measures three-phase voltage, three-phase current, average voltage, average current, and two-phase active power (due to the use of two power meter methods, only the display is shown here)A、CTwo-phase power, total power.

4Transformer Capacity and No-load Characteristic Tester (Color Screen) capable of measuring voltage and current for each phase2－42Content of the second harmonic and the total distortion rate of all signals (harmonic distortion).

5The Transformer Capacity and No-Load Characteristic Tester (Color Screen) displays real-time waveforms of each phase's voltage and current, providing a direct view of waveform distortion.

6Voltage circuit wide-range limiting: voltage can be measured up to750VNo gear shifting required for precision. The instrument itself will not be damaged due to incorrect voltage level selection.

7The large screen, full Chinese menu, and operation prompts facilitate a friendly human-machine dialogue. The conductive rubber keys make operation more convenient, and the high-brightness true-color LCD display can adapt to all seasons.

8Users can print the test results at any time using the miniature printer.

9All test results can be saved in a recordable format for future reference.

10The built-in real-time clock displays the current date and time, allowing the storage of test time along with records.
