Transformer Testing Plan

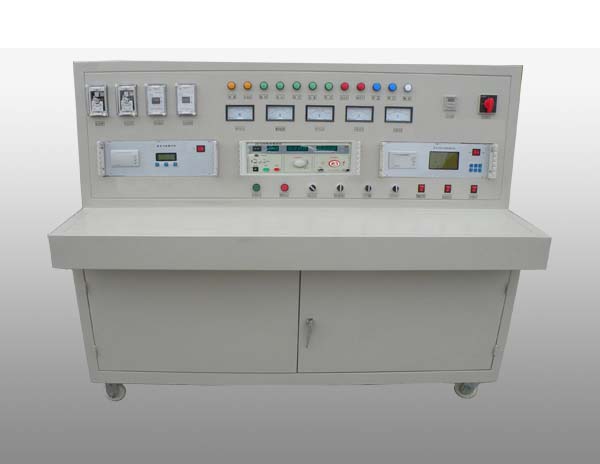

The Transformer Comprehensive Test Bench is a highly integrated testing device, strictly adhering to...GB1094、GB/T4776、GB/T5169This testing bench is designed and manufactured in accordance with relevant national standards. It is primarily used for testing the no-load and load characteristics of electrical transformers and distribution transformers.Please provide the Chinese content you would like translated..Certainly.The test supports both the harmonic frequency induction test and the power frequency withstand voltage test for the tested transformer.Full.FaceEvaluate the performance of transformers.

Product Features

Advanced Display Technology: The testing bench utilizes large-screen backlit LCD display technology, offering an intuitive and clear operating interface with clear categorization, simplifying and speeding up operations. Users can easily view various test parameters and results, significantly enhancing work efficiency.

FeatureAll.No Chinese content provided, original return: "Surface"The test bench is equipped with a variety of testing functions, including DC resistance testing, ratio and group testing, no-load loss testing, load loss testing, AC withstand voltage testing, and induction withstand voltage testing, among others. These features can meet2500KVABelow is the transformerNo content provided for translation..FaceEnsure transformer performance stability and reliability through testing requirements.

Data Readout and Printing: Voltage and current data on the test bench can be directly read via a digital indicator or a pointer gauge. Loss, transformation ratio, direct resistance, and other test results can also be conveniently printed out. This provides users with a convenient method for data recording, facilitating subsequent data analysis and report writing.

Superior Safety Performance: During withstand voltage tests, the test bench is equipped with overcurrent audio-visual alarm function, which will immediately trigger an audio-visual alarm upon detecting overcurrent conditions, alerting users to take timely actions. Additionally, the test bench features a timing function to ensure the accuracy and safety of the withstand voltage test.

In summary, the Transformer Comprehensive Test Bench stands out with its advanced display technology,All.SurfaceThe comprehensive testing capabilities, convenient data reading and printing methods, and superior security performance make it an essential device in the power transformer testing field. Whether it's the power sector, manufacturing enterprises, or research institutions, transformers can be tested using this testing bench.No content provided for translation..SurfaceAccurate testing ensures the stable and reliable performance of transformers.
