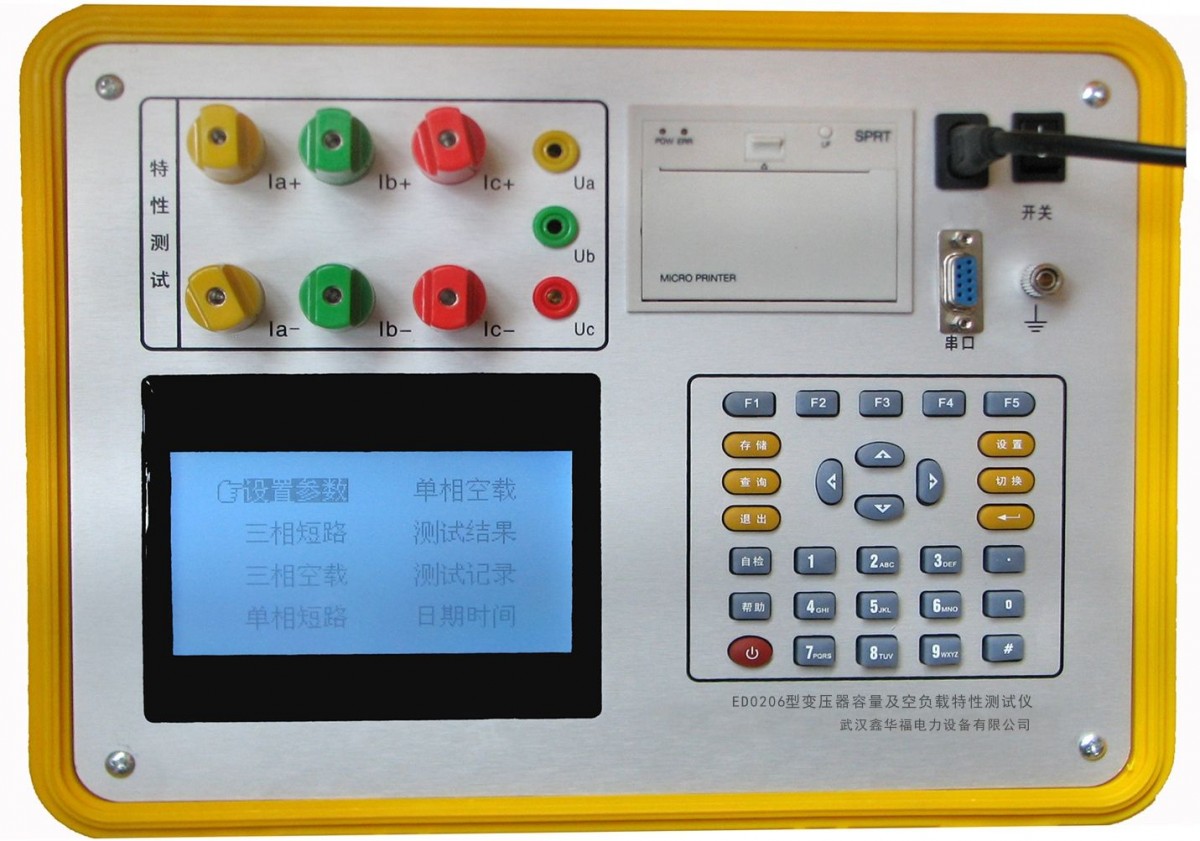

Transformer Capacity Comprehensive Tester

Transformer Capacity and No-Load Characteristic Tester Product Introduction

Our Transformer Capacity and No-Load Characteristic Tester is a high-precision instrument meticulously developed and manufactured by our company for measuring transformer no-load, load parameters, and zero-sequence impedance parameters. It enables precise measurement of a series of parameters, including no-load current, no-load loss, short-circuit loss, impedance voltage, harmonic content, and distortion rate for various transformers.

The Transformer Capacity and No-load Characteristic Tester boasts advantages such as compact size, light weight, high measurement accuracy, good stability, and easy operation and learning.,Completely replacing the previous method of measuring transformer losses and capacities using multiple tables, it features simple wiring, convenient testing, and recording, significantly enhancing work efficiency. With a large-screen true-color LCD as the display window, it offers a graphical menu operation with Chinese prompts, displaying multiple parameters on a single screen interface. The human-machine dialogue interface is user-friendly, simple to use, and quick, making it suitable for power users at all levels.First.SelectedProduct.

Transformer Capacity and No-Load Characteristic Tester Product Features

1The Transformer Capacity and No-Load Characteristic Tester can measure the no-load current, no-load losses, impedance voltage, load losses, and zero-sequence impedance of various transformer types.

2The Transformer Capacity and No-Load Characteristic Tester can automatically perform waveform distortion correction, temperature correction (offering both simple temperature correction and additional loss correction), voltage correction (no-load test under non-rated voltage), and current correction (short-circuit test under non-rated current conditions), making it particularly suitable for units without conditions for conducting short-circuit tests on larger capacity transformers.

3Transformer Capacity and No-Load Characteristic Tester can measure three-phase voltage, three-phase current, average voltage, average current, and two-phase active power (due to the use of two power meters method, only displayed here)A、CTwo-phase power, total power.

4Transformer Capacity and No-load Characteristic Tester can measure the voltage and current of each phase.2－42Content of the second harmonic and the total distortion rate of all signals (harmonic distortion).

5The Transformer Capacity and No-load Characteristic Tester can display the real-time waveforms of phase voltage and current, intuitively showing the distortion of the waveforms.

6Wide voltage loop limit: voltage can be measured up to high levels750VNo need to shift gears to ensure accuracy. The instrument itself will not be damaged due to incorrect voltage gear selection.

7Large screen, full Chinese menu and operation prompts for friendly human-computer dialogue, conductive rubber keys for easier operation, high-brightness true-color LCD display, adaptable to all seasons.

8Users can print out the test results at any time using the mini printer.

9All test results can be saved in a recordable format for future reference.

10The device features an internal real-time clock, which displays the current date and time and allows for the simultaneous storage of test times when recording data.
