Transformer Capacity Loss Test Instrument

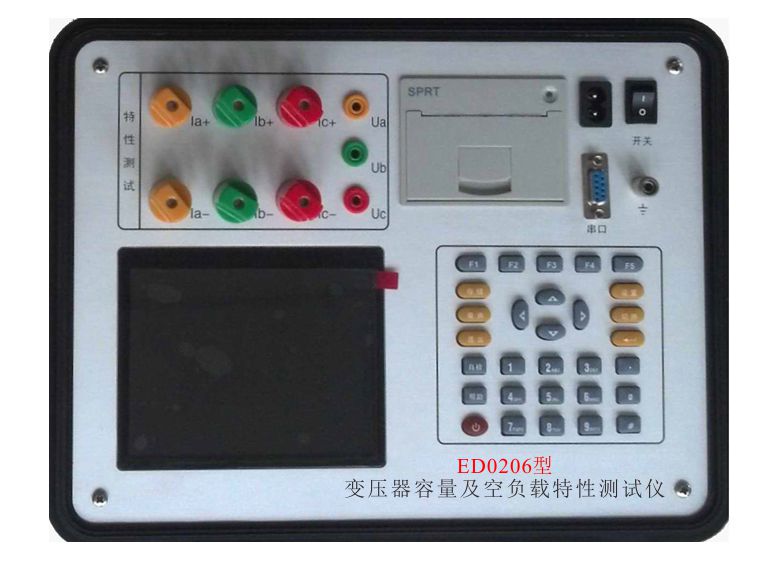

Transformer Capacity and No-Load Characteristic Tester Product Introduction

The Transformer Capacity and No-Load Characteristic Tester is a high-precision instrument meticulously developed and manufactured by our company, specifically designed for measuring transformer no-load, load parameters, and zero-sequence impedance parameters. It allows for precise measurement of a range of parameters, including no-load current, no-load losses, short-circuit losses, impedance voltage, harmonic content, and distortion rate for various transformers.

The Transformer Capacity and No-Load Characteristic Tester boasts its compact size, lightweight design, high measurement accuracy, excellent stability, and easy-to-learn operation.,Completely replacing the previous method of measuring transformer losses and capacities using multiple tables, this new method boasts simple wiring, convenient testing, and recording, significantly enhancing work efficiency. It features a large-screen true-color LCD display as the viewing window, with graphical menu operations and Chinese prompts. The display interface integrates multiple parameters onto one screen, offering a user-friendly human-machine dialogue interface that is easy and quick to use, making it suitable for power users at all levels.First.SelectedProduct.

Transformer Capacity and No-Load Characteristic Tester Product Features

1The Transformer Capacity and No-Load Characteristic Tester can measure the no-load current, no-load losses, impedance voltage, load losses, and zero-sequence impedance of various transformer types.

2The Transformer Capacity and No-Load Characteristic Tester can automatically perform waveform distortion correction, temperature correction (offering both simple temperature correction and additional loss correction), voltage correction (no-load test under non-rated voltage), and current correction (short-circuit test under non-rated current conditions), making it particularly suitable for units without conditions for conducting short-circuit tests on larger capacity transformers.

3Transformer Capacity and No-load Characteristic Tester Measures Three-phase Voltage, Three-phase Current, Average Voltage, Average Current, and Two-phase Active Power (Due to the use of two wattmeter method, only the display is shown here)A、CTwo-phase power, total power.

4Transformer Capacity and No-Load Characteristic Tester, capable of measuring voltage and current of each phase.2－42Content of the second harmonic and the total distortion rate of all signals (harmonic distortion).

5The Transformer Capacity and No-load Characteristic Tester can display the real-time waveforms of each phase's voltage and current, intuitively showing the distortion of the waveforms.

6Voltage loop wide range limit: Voltage can be measured up to750VNo need to shift gears to ensure accuracy. The instrument itself will not be damaged due to incorrect voltage gear selection.

7The large screen, full Chinese menu, and operation prompts facilitate a friendly human-computer dialogue. The conductive rubber buttons make operation more convenient, and the high-brightness true-color LCD display is adaptable to all seasons, from winter to summer.

8Users can print out the test results at any time using the mini printer.

9All test results can be recorded and saved for future reference.

10Equipped with a real-time clock, it can display the current date and time in real-time, and simultaneously store the test time when recording data.
