Transformer Capacity and Loss Parameters Tester

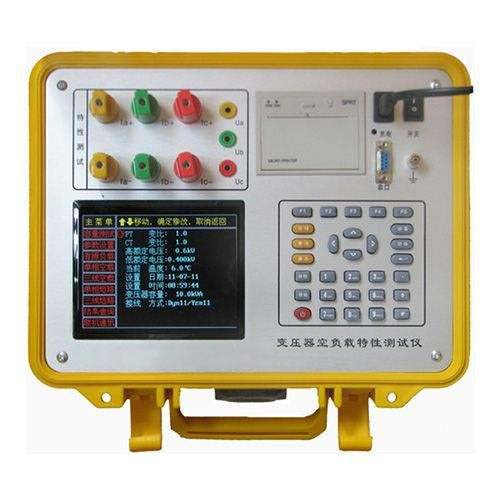

Transformer Capacity and No-Load Characteristic Tester Product Introduction

Our Transformer Capacity and No-Load Characteristic Tester is a high-precision instrument meticulously developed and manufactured by our company, specifically designed for measuring transformer no-load, load parameters, and zero-sequence impedance parameters. It allows for precise measurement of a range of parameters including no-load current, no-load losses, short-circuit losses, impedance voltage, harmonic content, and distortion rate for various transformers.

The Transformer Capacity and No-Load Characteristic Tester boasts the advantages of compact size, light weight, high measurement accuracy, good stability, and easy operation and learning.,Fully replacing the previous method of measuring transformer losses and capacities using multiple tables, this method features simple wiring, convenient testing, and recording, significantly enhancing work efficiency. It utilizes a full-color LCD display with a large screen as the viewing window, offering a graphic menu operation with Chinese prompts. The display interface integrates multiple parameters on a single screen, boasts a user-friendly human-machine dialogue interface, and is easy and quick to use, making it suitable for power users at all levels.No Chinese content provided, please provide the text to be translated..SelectedProduct.

Transformer Capacity and No-Load Characteristic Tester Product Features

1The Transformer Capacity and No-load Characteristic Tester can measure the no-load current, no-load loss, impedance voltage, load loss, and zero-sequence impedance of various types of transformers.

2The Transformer Capacity and No-Load Characteristic Tester can automatically perform waveform distortion correction, temperature correction (offering both simple temperature correction and additional loss correction), voltage correction (no-load test under non-rated voltage), and current correction (short-circuit test under non-rated current conditions), making it highly suitable for units that do not have the conditions for short-circuit tests on transformers of larger capacity.

3Transformer Capacity and No-Load Characteristic Tester can measure three-phase voltage, three-phase current, average voltage, average current, and two-phase active power (due to the use of two power meter method, only two-phase active power is displayed here)A、CTwo-phase power, total power.

4Transformer Capacity and No-Load Characteristic Tester can measure the voltage and current of each phase.2－42Content of the second harmonic and the total distortion rate of all signals (harmonic distortion).

5The Transformer Capacity and No-load Characteristic Tester can display the real-time waveforms of each phase's voltage and current, providing a direct view of waveform distortion.

6Voltage circuit wide range limit: Voltage can be measured up to750VNo need to shift gears to ensure precision. The instrument will not be damaged by selecting the wrong voltage gear.

7The large screen, full Chinese menu, and operation prompts facilitate a friendly human-machine dialogue. Conductive rubber keys simplify the operation, while the high-brightness true-color LCD display adapts to both winter and summer seasons.

8Users can print the test results at any time using the miniature printer.

9All test results can be saved in a recordable format for future reference.

10Our product is equipped with a real-time clock, which can display the current date and time, allowing for the simultaneous storage of test time with records.
