Transformer Winding Deformation Tester Based on Frequency Response Method Product Introduction

Transformer Winding Deformation Tester Using Frequency Response AnalysisFRAAdvanced equipment for precise judgment of transformer internal winding deformation conditions. By analyzing the characteristic parameters of transformer internal windings.:Please provide the Chinese content you would like translated..Certainly.The meter can promptly detect potential faults within the winding, providing crucial protection for the stable operation of the power system.

During the design and manufacturing process of transformers, once the coil and internal structure are determined, the corresponding parameters (such as capacitance) are established.CiWith InductanceLiThe frequency domain characteristic response of each coil is also fixed.Please provide the Chinese content that needs to be translated..Please provide the Chinese content that needs to be translated into American English.The frequency spectrum between the three-phase coils is comparable.

However, when transformers encounter faults such as inter-turn or phase-to-phase short circuits, relative displacement of windings, or coil deformation caused by electromagnetic force during testing, transportation, or operation, the distribution parameters of their windings will change. This change leads to alterations in the transformer's original frequency-domain characteristics, manifested as variations in the amplitude of frequency response and shifts in resonance frequencies.

The Frequency Response Transformer Winding Deformation Tester is developed based on this principle. It quantifies the response changes of transformer internal winding parameters across different frequency domains and determines the size of the change in magnitude, the amplitude of frequency response variation, the area, and the trend.:Please provide the Chinese content to be translated..Certainly.Determine the degree of variation in the winding. This provides users with a clear basis to ascertain whether the transformer has suffered severe damage and whether a major overhaul is necessary.

For operational transformers, regardless of whether frequency domain feature maps were previously saved, this tester can judge the degree of fault by comparing the differences in the feature maps between the transformer's faulty coils. If there is a set of original winding feature maps for reference, the analysis of the transformer's operating condition, post-accident judgment, and maintenance inspection will be more accurate.:Please provide the Chinese content to be translated..No Chinese content provided for translation.Powerful.

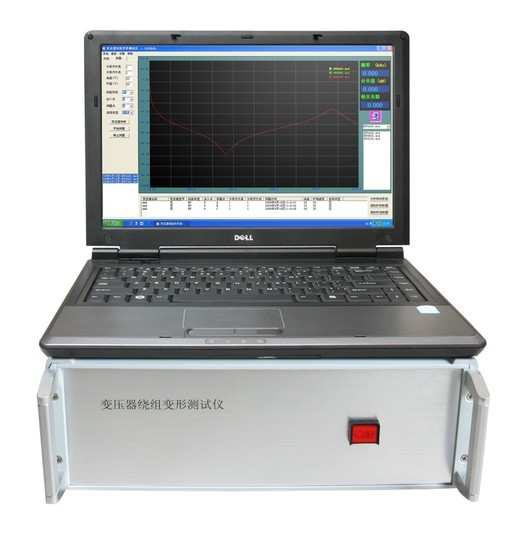

The test instrument consists of a laptop and a microcontroller, forming a high-precision measurement system with a compact structure and easy operation. It boasts comprehensive testing and analysis capabilities, allowing users to operate it effortlessly with just a reference to the user manual or a brief training session. The Frequency Response Method Transformer Winding Deformation Tester is suitable for...63kV～500kVInternal structure fault detection in power transformers is an indispensable and crucial inspection tool in the electrical power system.
