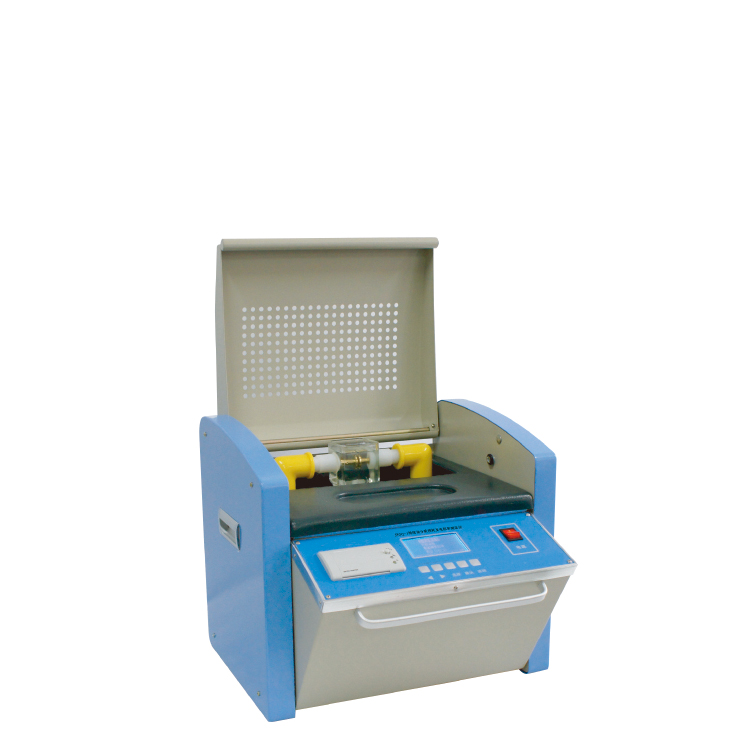

Product Features of Fully Automatic Insulating Oil Dielectric Loss and Resistivity Tester

The All-in-One Insulating Oil Dielectric Loss and Resistivity Tester is an advanced testing device that integrates high-precision measurement, intelligent automation, and safety protection. Below are the outstanding features of this product:

Three-electrode type oil cup structure: The oil cup design conforms to the national standardGB/T5654-2007Standard with three-electrode structure, inter-electrode spacingPlease provide the Chinese content to be translated..No content provided for translation.Control Maintained2mmEffectively eliminates the impact of stray capacitance and leakage on dielectric loss test results, ensuring the accuracy of the test outcomes.

Medium-frequency induction heating andPIDTemperature Control: The instrument utilizes advanced medium-frequency induction heating technology, combined with...PIDOur temperature control algorithm achieves non-contact heating between the oil cup and heater, ensuring even heating, rapid speed, and precise control. This heating method strictly maintains the temperature within the preset error range, enhancing the stability and reliability of the test.

SF6Standard Capacitors with Integrated Three-Point Configuration: Standard capacitors integrated internallySF6The inflatable three-point star structure ensures that the dielectric loss and capacitance are unaffected by external factors such as environmental temperature and humidity, guaranteeing consistent accuracy after long-term use of the instrument.

AC-DC-ACConvert Test Power Supply: AC Test Power SupplyAC-DC-ACThis design effectively isolates the fluctuations in city power voltage and frequency from affecting the accuracy of dielectric loss testing. It enables the instrument to operate correctly in complex environments such as power generation, ensuring the broad applicability and stability of the test.

Comprehensive Safety Protection Features: The instrument is equipped with comprehensive protective functions, including overvoltage, overcurrent, and high-voltage short-circuit protection. In the event of abnormal conditions, the instrument can quickly disconnect the high voltage and emit a warning message. Additionally, it features temperature sensor failure alerts and temperature-limited relays to ensure the safety and reliability of the testing process.

Convenient Test Parameter Settings: The instrument offers a user-friendly interface, allowing users to easily set test parameters such as temperature, AC voltage, and DC voltage. The temperature setting range is wide, and the AC and DC voltage settings are flexible, catering to various testing requirements.

Large screenTFTPure Color LCD Touchscreen Monitor: Large-sizedTFTThe Pure Color LCD Touchscreen Display offers clear and intuitive visuals with simple operation. Users simply set it up, and the instrument automatically conducts tests, stores, and prints the results.Extreme.No Chinese content provided. Please provide the text to be translated.Enhanced testing efficiency and user experience.

Real-Time Clock and Test Data Storage: The instrument is equipped with an internal real-time clock, allowing test dates and times to be automatically saved, displayed, and printed with the test results, facilitating user record-keeping and traceability.

The Empty Electrode Cup Calibration Function: The instrument is equipped with an empty electrode cup calibration function, which can measure the capacitance and dielectric loss factor of the empty electrode cup, thereby determining the cleaning and assembly status of the empty electrode cup. Calibration data is automatically saved, which helps improve the calculation accuracy of relative permittivity and DC resistivity.

RAM9Platform-centric High Performance: Instruments withRAM9Platform-centric, integrating advanced testing algorithms and data processing technologies to achieve high-precision and high-speed testing performance. Whether it's testing speed or accuracy, it meets the high requirements of users for insulation oil dielectric loss and resistivity testing.

In summary, the fully automatic insulating oil dielectric loss and resistivity tester stands out with its high precision, intelligent automation, multiple safety protections, and user-friendly operation. It has emerged as the ideal choice for dielectric loss and resistivity testing of insulating oil. Whether in the power, chemical, or other related fields, it provides users with accurate and reliable testing solutions.
