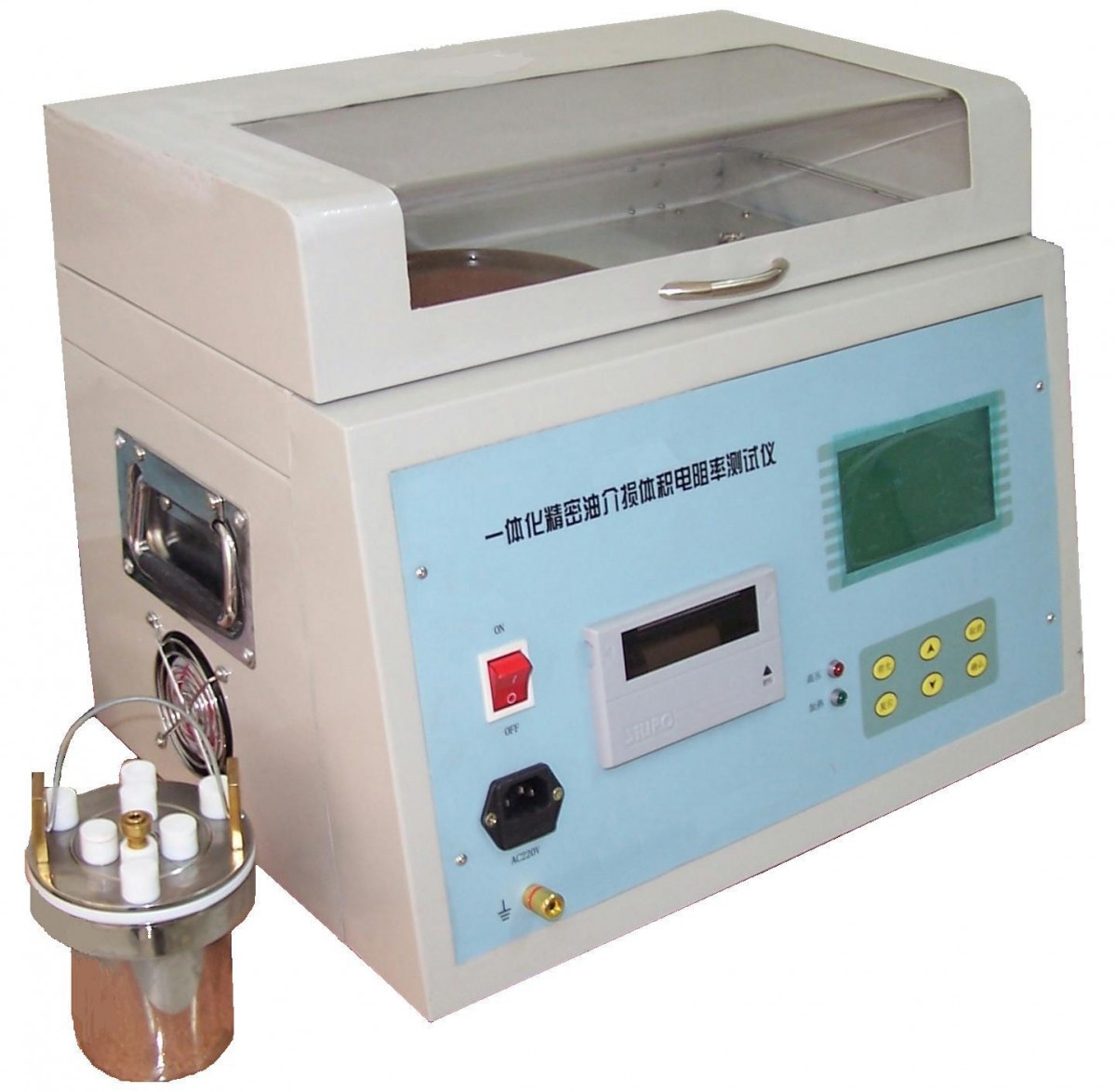

Introducing the Integrated Precision Oil Dielectric Loss Volume Resistivity Tester

The Integrated Precision Oil Dielectric Loss and Volume Resistivity Tester is a high-precision instrument that combines multiple functions. It is specifically designed for testing the dielectric loss angle and volume resistivity of insulating liquids and other dielectric media. The tester incorporates numerous key components, including the dielectric loss oil cup, temperature controller, temperature sensor, dielectric loss test bridge, AC test power supply, standard capacitor, high-impedance meter, and DC high-voltage source, ensuring both accuracy and ease of testing.

The heating section of the tester employs high-frequency induction heating, an advanced heating technology that ensures non-contact between the oil cup and the heating element. This results in even and rapid heating, easy control, and significantly improves testing efficiency. The alternating current test power supply is used...AC-DC-ACThe conversion method effectively isolates the impact of fluctuating city power voltage and frequency on the accuracy of dielectric loss testing, ensuring the accuracy and reliability of test results even during generator power generation.

In addition, the standard capacitor inside the tester isSF6The inflatable three-terminal capacitor maintains consistent accuracy over time, as its dielectric loss and capacitance are unaffected by environmental factors such as temperature and humidity.

The design of the integrated precision oil interfacial tension resistivity tester has fully considered the user's operational experience, with a large screen for ease of use.320×240Touchscreen displays, full Chinese menus, and step-by-step Chinese prompts allow operators to master the system without professional training. Additionally, test results can be printed out for easy record-keeping and analysis.

Integrated Precision Oil Dielectric Loss Volume Resistivity Tester Product Features

All-Digital Technology and Intelligent Automation Measurement: The instrument employs all-digital technology, achieving intelligent automation measurement, significantly enhancing the accuracy and efficiency of testing.

Multi-functional Integration: Integrates key components such as dielectric loss oil cups, temperature controllers, temperature sensors, dielectric loss test bridges, AC test power supplies, standard capacitors, high-impedance meters, and DC high-voltage sources, achieving integrated testing functionality.

High-Frequency Inductive Heating Technology: Utilizing high-frequency inductive heating, the oil cup and heating element are non-contact, ensuring even and rapid heating with easy control, thereby enhancing testing efficiency.

AC-DC-ACConversion Method: Communication Test Power Supply AdoptedAC-DC-ACSwitching methods effectively isolate fluctuations in municipal power supply from affecting test accuracy, ensuring the reliability of test results.

High Stability Standard Capacitors: Internal standard capacitors forSF6The inflatable three-pole capacitors feature stable dielectric loss and capacitance, unaffected by environmental factors, ensuring consistent accuracy and precision during long-term instrument use.

User-friendly Interface: Equipped with a large touchscreen display, full Chinese menu and prompts, the operation is simple and intuitive, allowing for proficient use without the need for professional training.

Test Results Printing: The system now supports test result printing, facilitating user record-keeping and analysis of test data.

In summary, the integrated precision oil dielectric loss and volume resistivity tester stands out due to its high precision, intelligence, and convenience. It plays a crucial role in testing the dielectric loss angle and volume resistivity of insulating liquids and other dielectric media, making it an ideal testing tool for the power and chemical industries.
