Transformer Load Characteristic Tester

Product Introduction

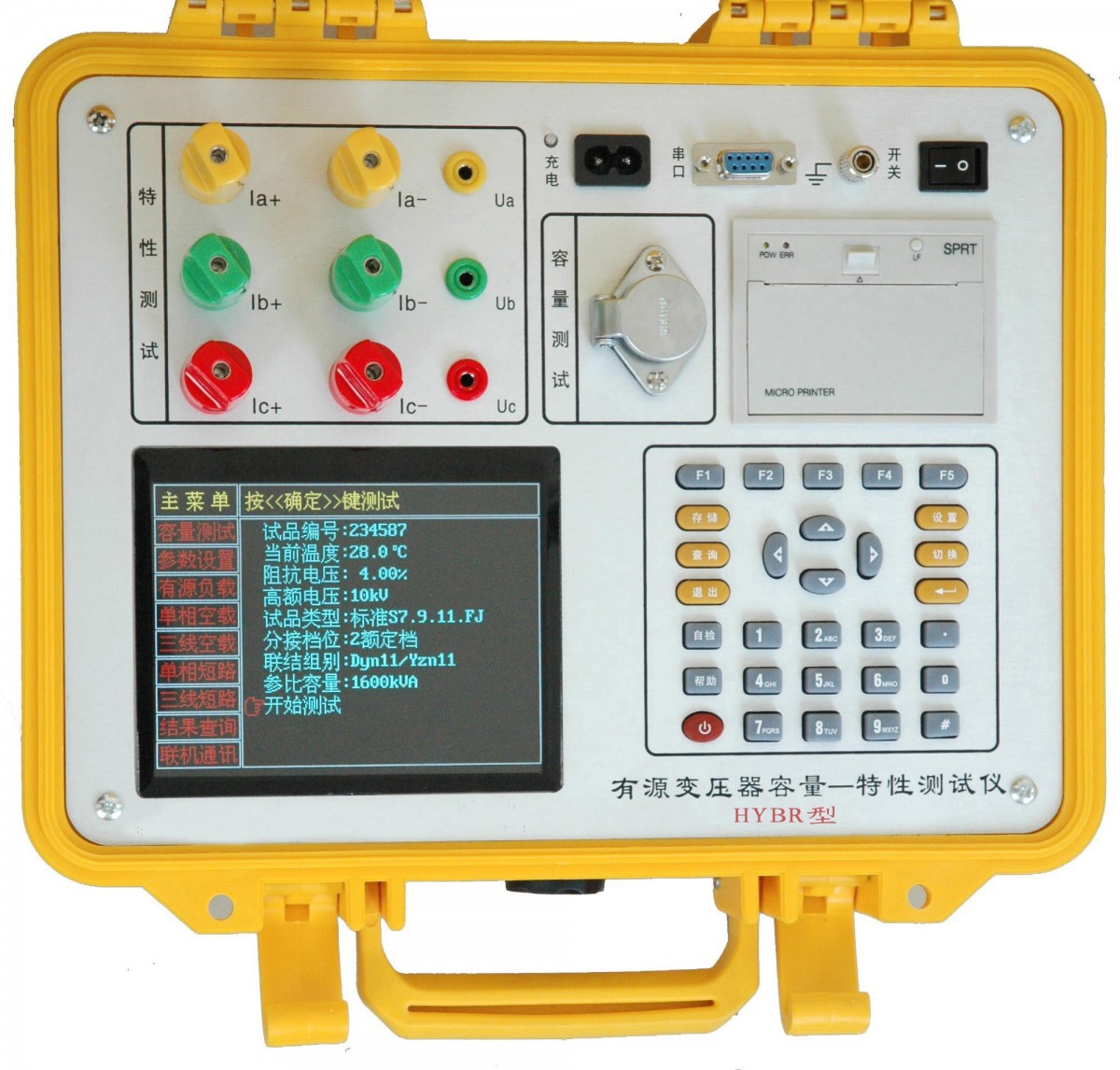

ED0206The Transformer Capacity and No-load Characteristic Tester (Monochrome Screen) is a high-precision instrument meticulously developed and manufactured by our company for the measurement of transformer no-load, load parameters, and zero-sequence impedance parameters. It can perform precise measurements on a range of parameters, including no-load current, no-load losses, short-circuit losses, impedance voltage, harmonic content, and distortion rate for various transformers.

ED0206The Transformer Capacity and No-Load Characteristic Tester (Monochrome Screen) boasts compact size, light weight, high measurement accuracy, excellent stability, and easy operation and learning.,The new method completely replaces the previous approach of using multiple tables to measure transformer losses and capacity, featuring simple wiring, convenient testing, and recording, significantly enhancing work efficiency. It utilizes a large-screen true-color LCD as the display window, with a graphical menu operation and Chinese prompts. The display interface integrates multiple parameters onto one screen, offering a user-friendly human-machine dialogue interface, simple and quick to use, suitable for power users at all levels.First.SelectedProducts.

Product Features

1、ED0206Transformer Capacity and No-Load Load Characteristic Tester (Monochrome Screen) can measure the no-load current, no-load losses, impedance voltage, load losses, and zero-sequence impedance of various transformer types.

2、ED0206The Transformer Capacity and No-Load Load Characteristic Tester (monochrome screen) can automatically perform temperature calibration, voltage calibration (no-load test under non-rated voltage), current calibration (short-circuit test under non-rated current conditions), direct resistance calibration. Operators simply input the calibration index based on the transformer type, and the instrument will automatically calculate the corrected results.

3、ED0206Transformer Capacity and No-Load Load Characteristic Tester (Monochrome Screen) Voltage Circuit Wide Range Limit: Voltage as high as can be measured750VNo need to shift gears to ensure accuracy. The instrument itself will not be damaged due to incorrect voltage gear selection.

4Large screen, full Chinese menu, and operation prompts facilitate friendly human-machine interaction. Conductive rubber keys make operation more convenient, and the high-brightness LCD display can adapt to all seasons.

5Users can print out the test results at any time using the mini printer.

6All test results can be saved in a recordable format for future reference.
