Frequency Converter Medium Loss Tester

Product Overview

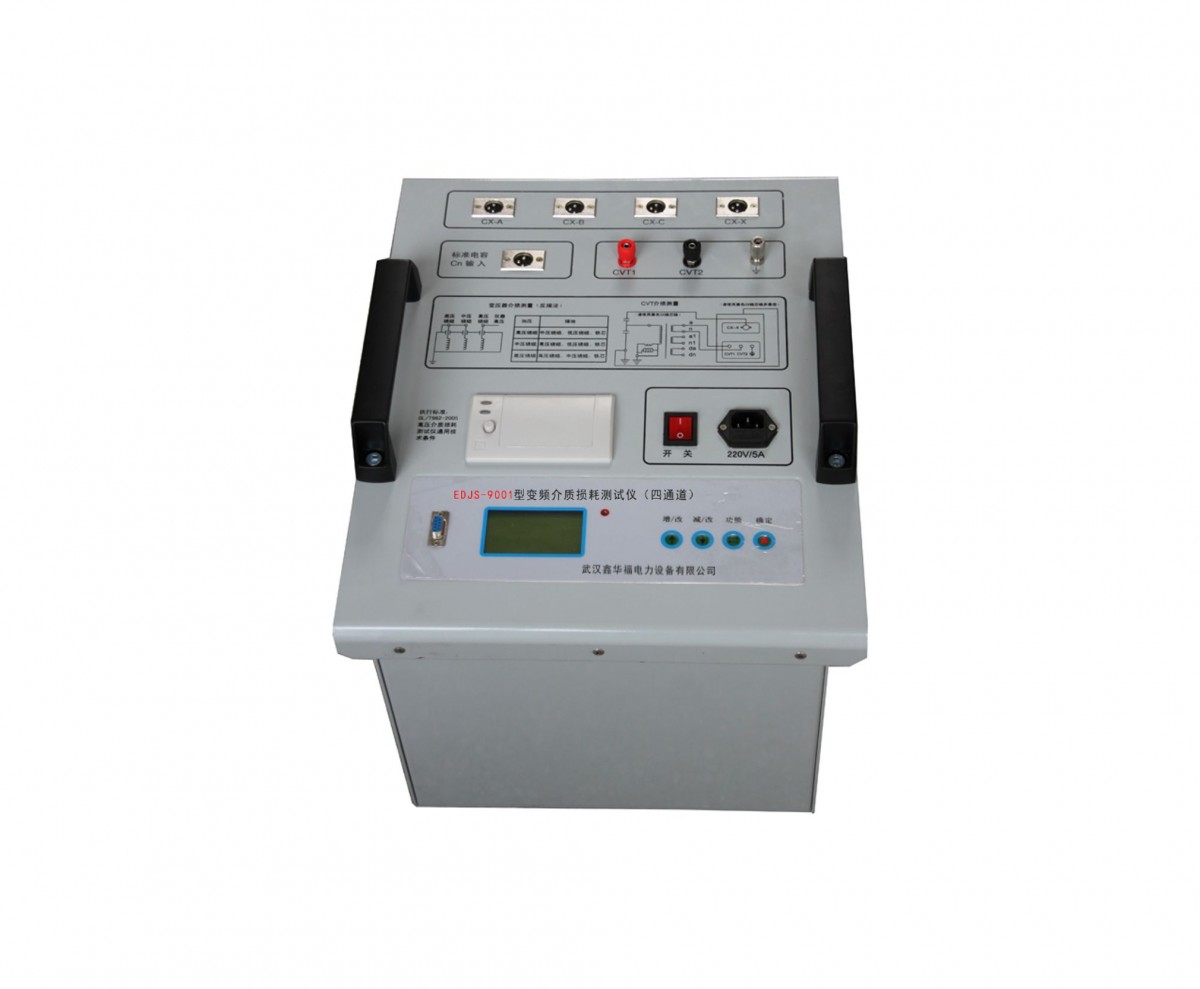

EDJS-9001Variable Frequency Medium Loss Factor Tester (Four Channels) is a novel device for measuring the tangent of the medium loss angle.tgδ) and capacitance valueCxOur intelligent instruments are capable of measuring the dielectric loss tangent values of various insulation materials, insulation sleeves, power cables, capacitors, transformers, and other high-voltage equipment under industrial frequency high voltage, on-site.tgδ) and capacitance valueCxThe instrument features an integrated structure, incorporating standard capacitors and a boost power supply, offering compact size, lightweight design, and ease of portability. It boasts simple operation, automatic measurement, intuitive readings, no need for conversion, high precision, and strong anti-interference capabilities. It can also be connected to an external power source and used with various specifications of high-voltage standard capacitors produced by our factory for measuring high-voltage dielectric loss.

EDJS-9001The Variable Frequency Medium Loss Test Instrument (4 Channels) is a high-precision device used on-site in power plants and sub-stations for fully automatic measurement of the tangent loss value and capacitance of various high-voltage power equipment. The instrument features a Chinese menu function, making operation simpler and more convenient. With one operation, the computer automatically completes the entire measurement process. It is currently the ideal medium loss measurement equipment.

EDJS-9001The Four-Channel Variable Frequency Medium Loss Test Instrument is also suitable for measuring high-voltage electrical equipment in workshops, laboratories, and research institutions.tgδ and capacitance; equipped with an insulating oil cup, it can test the dielectric loss of the insulating oil medium.

EDJS-9001The Variable Frequency Medium Loss Test Instrument (4 Channels) can measure high-voltage electrical equipment that is not grounded or directly grounded using both positive and negative wiring methods.

EDJS-9001Variable Frequency Medium Loss Test Instrument (4 Channels) adopts the domestic leading.The company has introduced a new frequency conversion anti-interference technology.200%Accuracy in Measurement Amid Disturbance, Stable Test Data; Adopting Advanced.Advanced filtering algorithm, coupled with scientific design methods, tested using the instrument's internal power supply.10KVLoad capacity up to60000pF，0.5kVAThe loading capacity of the equipment can reach1.2μF。

EDJS-9001Variable Frequency Medium Loss Test Instrument (Four Channels) boasts domestic pioneering.Advanced Measurement Technology:CVTA Single Wire MeasurementC1、C2Low-voltage reverse wiring shielding method measurementC11；CVTAutomatic ratio measurement, etc.

EDJS-9001Variable Frequency Medium Loss Test Instrument (Four Channels) also adopts domestic leading....Advanced Protection Measures: High-Voltage Short-Circuit Protection380VLow-voltage Input ProtectionCVTFour-limited protection for high and low voltage and current, anti-capacitance rise, and anti-misoperation.
