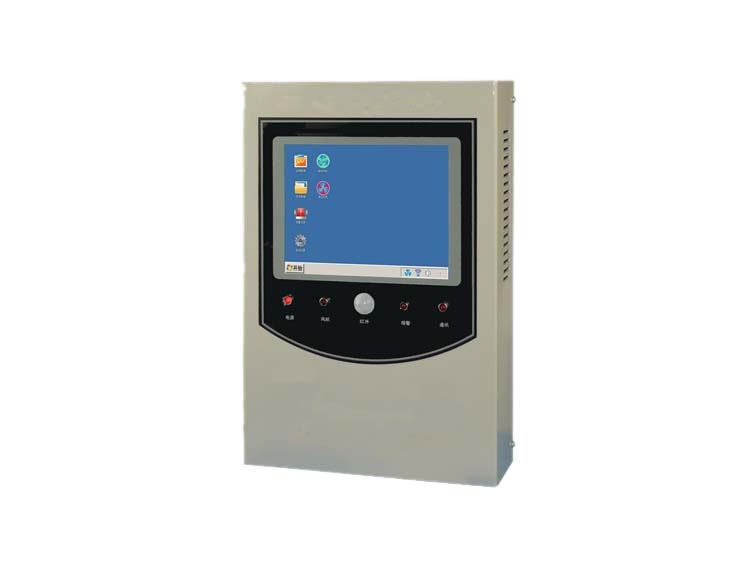

SF6 Leak Alarm System

Product Introduction

SF6The Leak Monitoring and Alarm System is a specialized intelligent online detection system designed in response to the current power system's heightened emphasis on safety in production. It is primarily applied to installations equipped with...SF6The equipment's distribution room is designed to provide staff with personal health and safety protection.

The core function of this system is to detect environmental air quality in real-time.SF6Gas content and oxygen content. Once the environmentSF6Excess gas levels or insufficient oxygen will trigger an immediate alarm, and the ventilation fan will automatically activate. Furthermore, the system is equipped with additional features such as temperature and humidity detection, voice prompts for operational status, remote alarm, and historical data querying.

Utilizing advanced sound speed principles, capable of real-time, quantitative measurement down to50ppm(v/v)No Chinese content provided.SF6Concentration ensures reliable safety for on-site staff. Original imported high-stability ultrasonic sensors and oxygen sensors guarantee the accuracy and reliability of measurement results.

The system is widely applicable to various voltage levels.SF6Cabinet rooms, switchgear rooms, and combined electrical roomsGISFacilities such as the control room and main transformer room.

Product Features

Advanced Testing Principle: Utilizes the principle of sound velocity for real-time, quantitative measurementSF6Leakage gas content, ensure accurate acquisition of gas contentSF6Our content surpasses traditional methods in qualitative discrimination.

High Reliability: The dual differential processing method effectively eliminates the impact of temperature and humidity on measurement results, ensuring the stability and accuracy of the measurements, fully compliant with theJJG 914-1996Six Fluoride.DesulfurizationIn compliance with the Leak Detector Calibration Regulation.

Security: Adopted24VDirect Current Power Supply, Avoid Usage220ACPower ensures system safe operation.

Multiple Detection Functions: Not only detectsSF6Gas leaks and oxygen deficiency conditions, also assisting with the detection of environmental data such as temperature and humidity.All.SurfaceMeets the requirements of the "Safety Regulations for Electric Power Industry."

Early-Stage Field Alarm Technology: Trace detection technology can emit early alarms, indicating the location of gas leaks and promptly notifying personnel to evacuate, thus protecting operating equipment.

Fieldbus Design: Connects all detection probes and the host unit via a single cable, enabling highly adaptable standalone or combined configurations.

Single Substation Support: Multiple Network Points Detected54Simultaneous point detection enhances efficiency and reliability.

Alarm Record Query Function: The high-capacity data storage can store multiple alarm records for convenient subsequent inquiry and analysis.

Historical Data Recording and Inquiry: The system is capable of storing a large volume of measurement data, providing users with historical data inquiry and analysis functions.

Infrared surveillance feature (optional): Upon staff entering the work area, the system automatically provides voice prompts and displays real-time detection results, enhancing on-site intuitive perception.

Low-Maintenance Design: Optimized electrical design with no need for adjustable components, using high-quality components to ensure long-term stable system operation.
