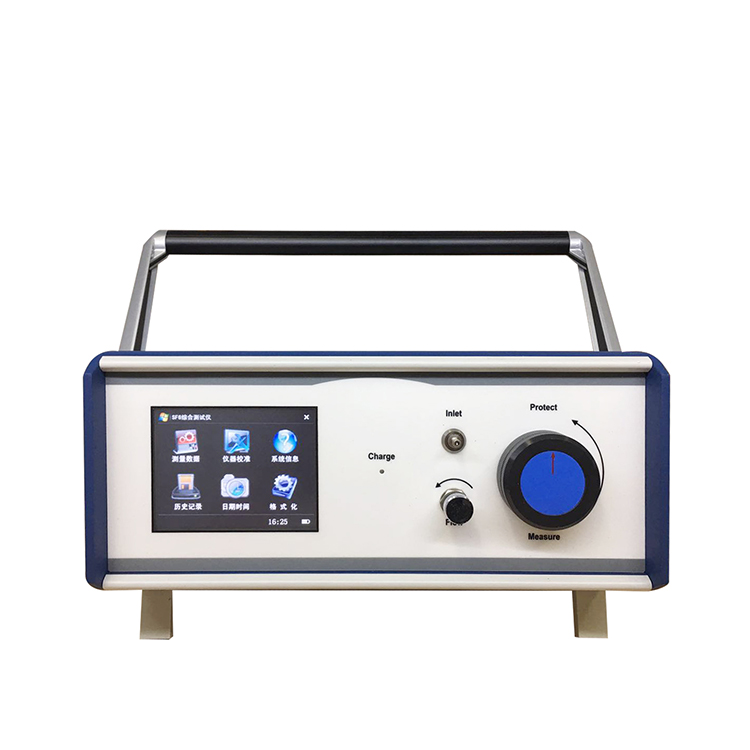

SF6 Micro-water Detection

Measurement Operation

At the start of the measurement, ensure all needle valves on the pipe are fully opened. Then, adjust the gas flow using the flow valve on the panel. Upon completion of the measurement, close the valves in the opposite order.

First-time use and long-term storage

If the micro hygrometer has been unused for an extended period, some air may remain in the test tube and gas chamber. During the first test, the high humidity content in this air may affect the test speed, as the instrument needs to first expel this moisture.SF6Gases have reached saturation. However, fromNo Chinese content provided..No content provided for translation.As the test begins, especially when conducting consecutive tests on multiple units.SF6When it comes to electrical equipment, this process is significantly expedited, usually requiring only3-5Minute.

Measuring in the Heatwave

When conducting measurements under high-temperature conditions, it is recommended to opt for the early morning, when temperatures are cooler, to ensure the accuracy of the results.

Product Features

Portable Design: The instrument is compact and lightweight, easy to carry and use, suitable for various on-site environments.

Rapid Measurement: No need to wait after the instrument is turned on; it immediately enters the measurement mode and quickly provides the humidity value.

High Efficiency, Low Gas Consumption: During the measurement process, the gas consumption is merely2L（101.2kPaEconomical and eco-friendly.

Safety-Locking Connectors: Equipped with high-quality German-imported locking connectors, ensuring secure and reliable connections with no risk of gas leakage.

High-Capacity Data Storage: The instrument is equipped with a large built-in storage capacity, capable of storing many more files.50We have compiled test data for subsequent analysis and processing.

Clear Display: Equipped with a liquid crystal display, it can directly show dew point and moisture content.ppmKey information such as environmental temperature, humidity, current time, date, and battery level.

Built-in Power Supply: Equipped with4AhRechargeable lithium-ion battery, capable of continuous operation for up to10Hours, to meet the demand for long-duration on-site testing.
