SF6 Micro-water Measurement

Measurement Operation

At the start of the measurement, ensure all needle valves on the measurement pipe are fully open. Subsequently, adjust the gas flow using the flow valve on the panel. When the measurement is complete, close the valves in reverse order.

First-time use and long-term storage

If the micro hygrometer has been unused for a long time, some air may remain in the test pipe and gas chamber. During the first test, the high humidity component in this air may affect the test speed, as the instrument needs to first expel this moisture.SF6Gases have reached saturation. However, fromThe.TwoAt the start of this test, especially when conducting consecutive tests on multiple units.SF6During the electrical equipment phase, this process accelerates significantly, typically requiring only3-5Minute.

Measurement in Extreme Heat

When measuring under high-temperature conditions, it is recommended to conduct measurements during the cooler morning hours to ensure accuracy of the results.

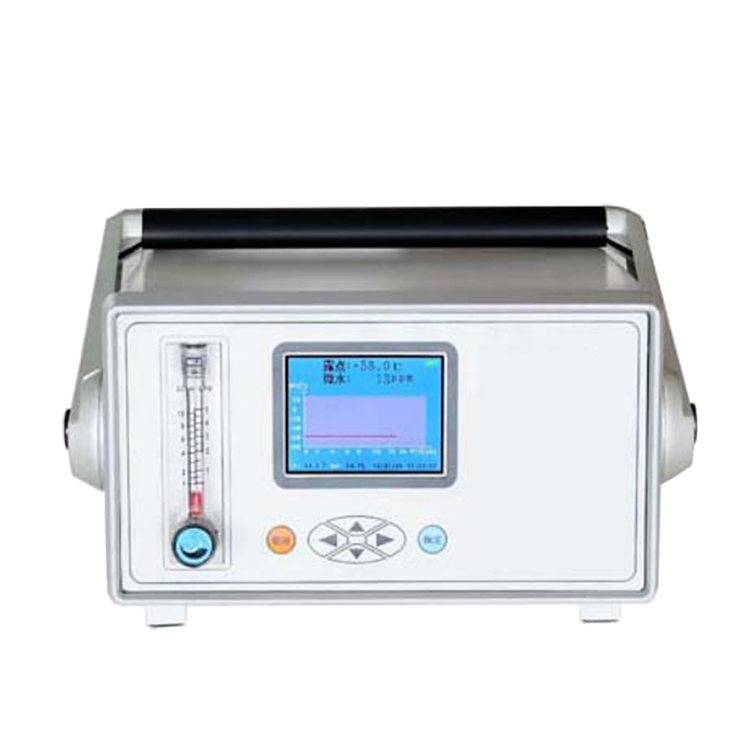

Product Features

Portable Design: The instrument is compact and lightweight, easy to carry and use, suitable for various on-site environments.

Rapid Measurement: The instrument is ready for measurement immediately after powering on, providing quick humidity readings without any delay.

High Efficiency, Low Gas Consumption: During the measurement process, the gas consumption is merely2L（101.2kPaEconomical and environmentally friendly.

Safety-Locking Connector: Equipped with high-quality German-imported locking connectors, ensuring secure and reliable connections with no risk of gas leakage.

High-Capacity Data Storage: The instrument is equipped with a large internal storage capacity, capable of storing50Group test data for subsequent analysis and processing.

Clear Display: Equipped with a liquid crystal display, which directly shows dew point and moisture content.ppmKey information including environmental temperature, humidity, current time, date, and battery level.

Integrated Power Supply: Equipped with4AhRechargeable lithium-ion battery, capable of continuous operation for up to10Hours, meeting the need for long-term on-site testing.
