SF6 Gas Leak Online Monitoring System

SF6Primary Function of Gas Leak Detection and Alarm System

Live DisplaySF6Gas Concentration

The system continuously collects and displays data from the monitored area within.SF6Gas Concentration.

Real-time updates on the operational control panel and backend monitoring computersSF6Concentration level.

Users can set alarm concentrations as needed.

Live Oxygen Concentration Display

In the testingSF6At the same time, the system also detects oxygen content.

Real-time oxygen concentration is displayed on the operation control panel and back-end monitoring computers.

The oxygen alarm concentration can be set according to user requirements.

Alarm Output

WhenSF6When the oxygen concentration reaches the preset alarm level, the control panel will emit sound and light, as well as voice alarms.

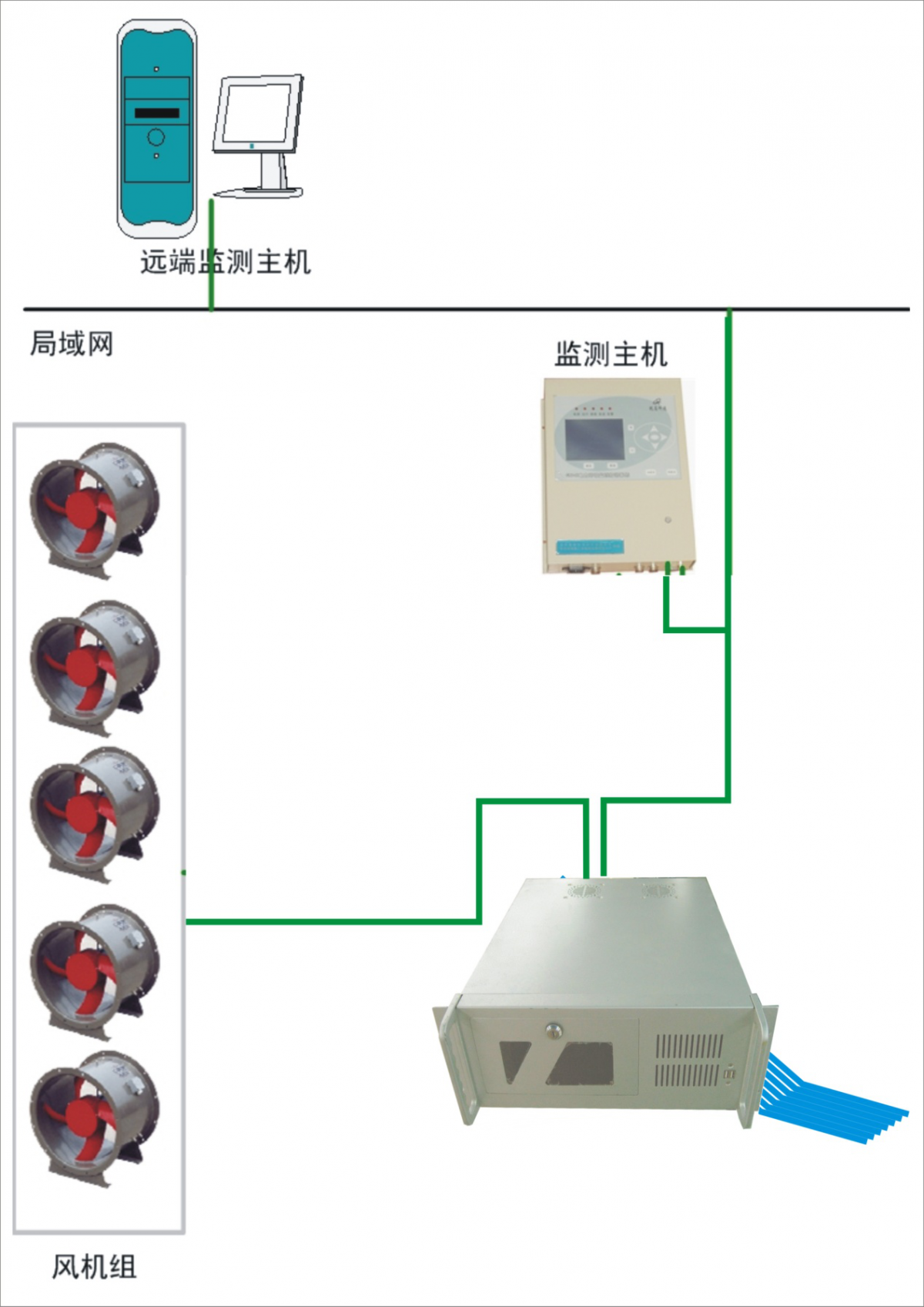

The system will notify the remote monitoring center via software agreements or dry contacts.

According to the settings, the system will automatically activate the fans for ventilation.

Infrared Sensors with Voice Alarms and Alerts

When someone approaches the switch room, the infrared sensor is activated.

The operation control panel will issue voice prompts to notify staff of the current conditions inside the room.SF6Please ensure adequate oxygen levels and recommend entering after the fan is turned on for ventilation.

Wind Turbine Control

There are three ways to start the fan: timed, alarm, and forced.

Users can set4A scheduled start time and duration.

At the alarm concentration level, users can choose whether to automatically activate the fan.

The operational control panel features buttons to manually start or shut down the fans.

Humidity and Temperature Display

Temperature Range Displayable by the System:-40～60℃。

System displays humidity range:0～100.%RH。

Acoustic and Optical Alarm Control

Users can set the audio-visual alarm to automatically turn off after a certain period of time after activation, to minimize disturbance to the surrounding area.

Detection Area

System capable of multi-sensing24A regional solution for multiple switch rooms, helping to reduce users' investment costs.
