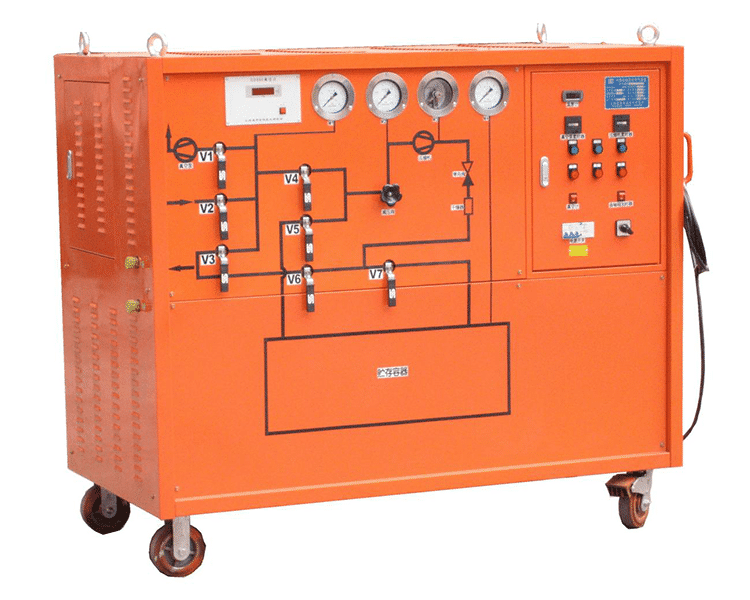

SF6 Gas Charging Device

Six Fluoride.DesulfurizationProduct Features of Gas Recovery and Refueling Device

Six Fluoride.DesulfurizationThe Gas Recovery and Refilling Unit is an integrated comprehensive device that encompasses multiple functions such as recovery, refilling, purification, vacuum extraction, storage, and bottling. It boasts a unique design, wide functionality, and simple operation, providing users with high efficiency and safety.SF6Gas Management Solutions.

� Advanced working principle:

The device utilizes cryogenic liquefaction technology.SF6Gas Recovery. Through the suction and compression functions of the compressor, gases within the equipment are collected.SF6Gas is inhaled and compressed to a higher pressure. Concurrently, the low evaporation temperature characteristic of the refrigerant is utilized to lower the high temperature.SF6The gas is cooled to its condensation temperature, achieving liquefaction and storage.No Chinese content provided. Please provide the text to be translated.The process will continue until the set recovery end pressure is reached.

� User-Friendly Operation

The electrical control box and ball valve design are centered on one side of the panel, streamlining the operation process. Users can easily control the sequential or switching of various functions through the electrical control box, while the ball valve is used to regulate the flow direction and pressure of the gas.

� Functional Aspect:

In addition to basic recycling and refilling capabilities, the device also features purification, vacuum extraction, storage, and bottling functions. Users can select the corresponding function combinations as needed for a one-stop solution.SF6Gas Management

� Ankao:

The design of the equipment has given full consideration to safety. During the recycling and refueling process, stability and reliability are ensured through a precise control system and high-quality components. Additionally, advanced purification technology is employed to effectively remove impurities and moisture from the gas, ensuringSF6Gas quality.

� High Efficiency & Energy Saving

Utilizing the suction and compression capabilities of the compressor, along with the properties of the refrigerant, the device can complete the process in a short period of time.SF6The recovery, purification, and refilling process of gases. This not only enhances work efficiency but also aids in reducing energy consumption and operating costs.

In summary,Six Fluoride.Sulfur OxidationThe Gas Recovery Filling Unit has gained widespread popularity among users due to its advanced working principle, user-friendly operation, comprehensive functions, and reliable safety.SF6The ideal choice for gas management, providing efficient and secure solutions for users in the power, electronics, and other industries.
