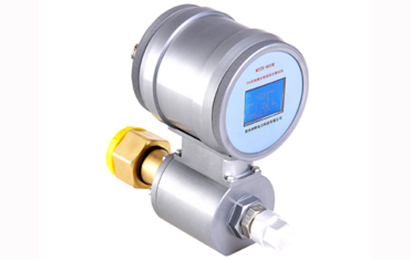

SF6 Density and Trace Water Online Monitoring System

SF6Overview of Online Gas Microwater Density Monitoring Device

SF6A Gas Micro Water Density Online Monitoring Device is a specialized device for circuit breakersSF6Advanced equipment for gas design. It monitors in real-time.SF6The trace moisture content, density, and temperature of gases, as well as the trends in these parameters. When monitoring detects...SF6When any critical gas indicator changes, the device responds quickly, displaying the corresponding change curve. Once the gas indicators reach the preset alarm state, the device will emit an alarm signal or automatically activate the alarm device. In more severe cases, when the indicators exceed the dangerous level, the device will trigger a locking mechanism, preventing the circuit breaker from operating, thereby ensuring the safety of the equipment and the entire substation system.

Furthermore, the device is equipped withRS-485/CANThe communication interface allows monitoring data to be uploaded in real-time to substation, city center, or higher-level monitoring centers. This feature is particularly suitable for unmanned substations, enabling online remote equipment monitoring. Additionally, these data provide valuable reference for the status inspection of circuit breakers.

SF6Online Gas Micro Water Content Density Monitoring Device Features

A. Online Monitoring: Continuous Online MonitoringSF6Gases' humidity, density, and temperature have replaced traditional offline instruments, providing more timely and accurate data.

B. Communication Interface: ReservedRS-485/CANTotal Communication Interface, facilitating data transmission and remote monitoring.

C. Automatic Alarm and Lockout: The device can automatically activate low-voltage alarm and lockout mechanisms based on preset values or user-defined settings, ensuring safety.

D. Backend Software Support: The backend software supports real-time data display and automatically generates trend charts of status changes, providing robust support for status maintenance.

E. Live demonstration: The facility is equipped with large LCD screens, allowing staff to view real-time data on-site. Additionally, the LCD screen features a screen protector, which extends its lifespan.

F. Flexible Installation: Offers a variety of valve connections for easy and quick installation and removal, without affecting the equipment itself.

G. Environmental Adaptability: The device features a full-sealed design, offering excellent anti-interference and anti-condensation capabilities, suitable for various indoor, outdoor, and low-temperature environments.

H. Automatic Calibration and Compensation: The dew point sensor features automatic calibration and also has the capability for automatic gas temperature compensation, ensuring the accuracy of the measured data.
