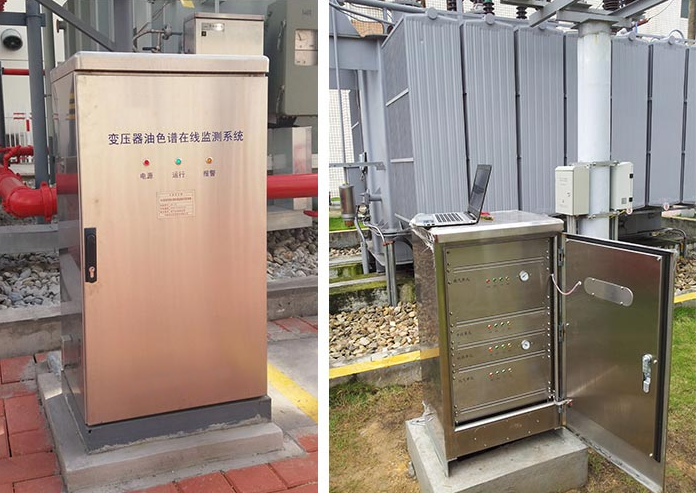

Transformer Oil Gas Online Monitoring System (Multi-Component) Product Brief

The Transformer Oil Gas Online Monitoring System (Multi-component) is an advanced device that integrates oil-gas separation, component separation, gas detection, power supply, and communication functions. It utilizes unique vacuum degassing technology and chromatographic analysis principles to achieve monitoring of the transformer oil.H2、CO、CO2、CH4、C2H4、C2H6、C2H2Monitoring of seven component gases and trace water online. Additionally, we can customize according to customer requirements.O2Component testing.

Key Features and Functions:

Composition Gas Monitoring: The system can simultaneously monitor multiple gas components in transformer oil, includingH2、CO、CH4、C2H2、C2H6、C2H4No Chinese content provided.CO2Providing users with comprehensive information on the internal status of transformers.

Vacuum Degassing Technology: Our proprietary vacuum degassing technology ensures effective separation and precise measurement of gases in oil.

Chromatographic Analysis Principle: By integrating the principles of chromatographic analysis, the system is capable of accurately analyzing the composition and concentration of gases in oil, providing a reliable basis for fault diagnosis.

Fault Diagnosis Function: By measuring and analyzing dissolved gases in insulating oil, the system can promptly detect and diagnose internal faults within transformers, providing strong support for preventive maintenance and condition-based inspections of the equipment.

Real-time Monitoring and Display: The system can monitor gas concentrations in real time and display the live data on a large LCD screen for immediate viewing, enabling users to easily keep track of the equipment's operational status at all times.

Remote Communication Feature: Equipped withRS-485/CANCommunication interfaces enable real-time upload of monitoring data to substation, city center, and even higher-level monitoring centers, achieving remote monitoring and data sharing.

High Adaptability: The system is suitable for35kVGas and micro-water detection for oil-immersed high-voltage equipment such as power transformers, arc furnace transformers, reactors, and current transformers of the above voltage class, boasts a wide range of applications.

Applicability Meaning:

The application of the on-line monitoring system for gas in transformer oil (multi-component) not only enhances the operational safety of transformer and other oil-immersed high-voltage equipment, but also provides a scientific basis for preventive maintenance and condition-based maintenance through real-time monitoring and data analysis. Additionally, the system's remote communication function enables on-line monitoring of equipment at unattended substation, improving monitoring efficiency and equipment reliability.
