SF6 Testing Equipment

Product Overview

SF6Gases, as insulating mediums, are non-toxic, non-flammable, and possess excellent insulating properties. Their insulating strength far exceeds that of traditional insulating gases, and they also exhibit good arc-quenching capabilities, thus finding widespread application inSF6Electrical appliances. Owing toSF6The high cost of gas, coupled with decomposition into toxic components due to the effects of arc, electrical sparks, and corona discharge, poses significant concerns.SF6Appliances require proper application of electrical equipment.SF6Gas Recovery. This device is designed for manufacturing and maintenance.SF6Appliance equipment: recycling and refuelingSF6A specialized equipment for gases.

Product Features

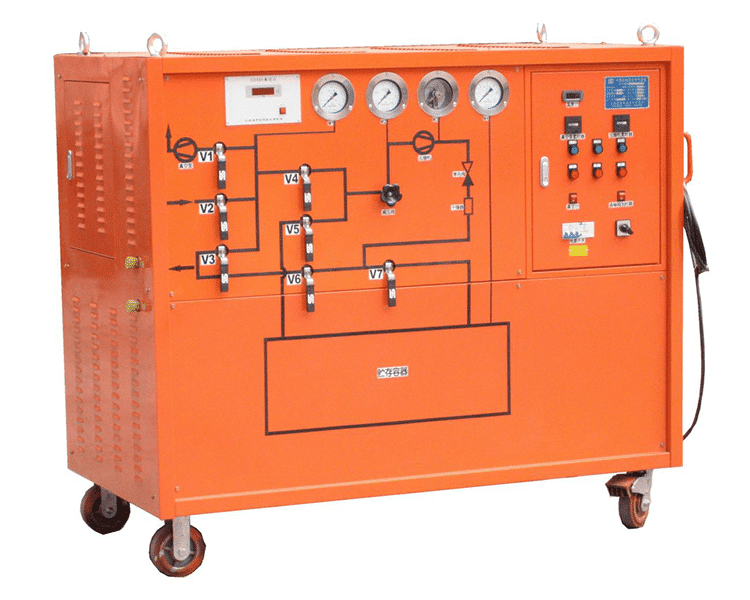

EDHCThe Type 6 Fluorine, Chlorine, Sulfur Gas Recovery and Filling Equipment is a comprehensive system featuring recovery, filling, purification, vacuum extraction, storage, and bottling capabilities. The system is quite complete. The sequential operation or switching between functions is primarily achieved through the electrical control box and ball valves located on one side of the panel.

The basic working principle of the recycling unit employs cryogenic liquefaction. During the recycling process, the unit utilizes the suction and compression capabilities of the compressor.SF6Electrical equipment under a certain pressureSF6Gas is吸入 into the compressor and compressed to a certain higher pressure. Simultaneously, it is utilizedLow evaporation temperature characteristics of refrigerantsSF6Gas is cooled to the condensation temperature for liquefaction and storage. This process is continuously aspirated toSF6The compressors run in series until the recovery final pressure is reached.

During the charging and discharging process, the vacuum pump of this device is initially utilized.SF6Vacuum is drawn from electrical equipment (or cylinders) and connecting pipelines, then the pressure difference is directly utilized or a pressure difference is created by using the suction of a compressor to store the device in its container.SF6Fill inSF6Electrical equipment is used until the desired working pressure is reached. When bottling is required, it simultaneously utilizes the methods previously described.Properties of refrigerants, to liquefySF6Directly fill into steel cylinders.

For further inquiries or purchase intentions regarding Wuhan E'dian Electric Power Test Equipment Co., Ltd.'s products, please call the manufacturer's direct sales hotline:400-034-8088Their professional team will provide you with more detailed information and services.
