CT Ratio Tester

Product Overview

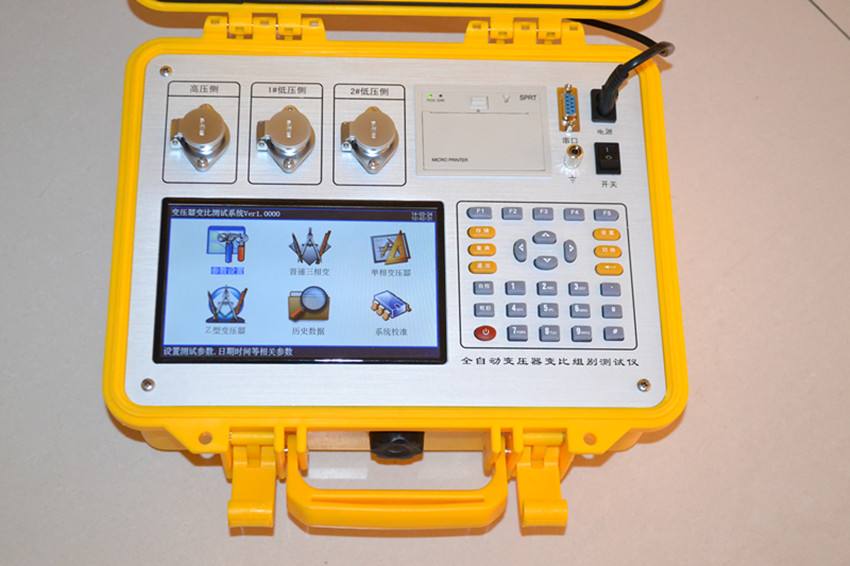

ED0203DSpecial Transformer Ratio Group Test Instrument

Transformer Ratio Tester|Transformer Ratio Test Gauge|Fully Automatic Transformer Ratio Tester-E'Dian Power Manufacturer

Transformer Ratio Test Instrument,Transformer Ratio Tester,Fully Automatic Ratio Test Instrument,Multifunctional Ratio Testing Instrument

Hubei Electric Power produces a transformer ratio tester, also known as a multi-functional transformer ratio tester, transformer ratio tester, and fully automatic transformer ratio tester. Hubei Electric Power is a manufacturer of transformer ratio testers.ED0203BThe Transformer Ratio Testers, including both the transformer ratio tester and the fully automatic transformer ratio tester, are ideal for testing transformer ratios, groups, polarities, and angles in power systems, transformer manufacturers, and railway electrical systems.

  Special Transformer Ratio Group Test Instrument is designed for three-phase transformers in the power system, particularlyZScott, inverse Scott, and balanced transformer designs for type winding transformers, rectifier transformers, and railway electrical systems.

  The instrument inputs single-phase power, generates three-phase or two-phase power from the internal power module, and outputs it to the high voltage side of the transformer. Then, both high and low voltages are sampled simultaneously, followed by calculations for phase group, transformation ratio, error, and phase difference.

  The instrument features a large LCD screen with full Chinese menu and Chinese character printout.

  User manual for the instrument is built-in and accessible at any time.

  Instrument can be used throughUSBDirectly controlled by the host computer,Completed settings, measurement, data upload, save, and print operations.

  The instrument offers extremely user-friendly operation and is the ideal transformer ratio and group polarity tester for power systems, transformer manufacturers, and railway electrical systems.

Product Introduction

Transformer Ratio Group Test Instrument  Special Ratio Transformer Tester  Transformer Ratio Group Test Instrument  Voltage Ratio Tester  Special Transformer Ratio Group Test Instrument

For further inquiries or purchase intentions regarding Wuhan E'dian Electric Power Equipment Co., Ltd.'s products, please call the manufacturer's direct sales hotline:400-034-8088Their professional team will provide you with more detailed information and services.
