5kV Water-Cooled Generator Insulation Resistance Tester

Product Introduction

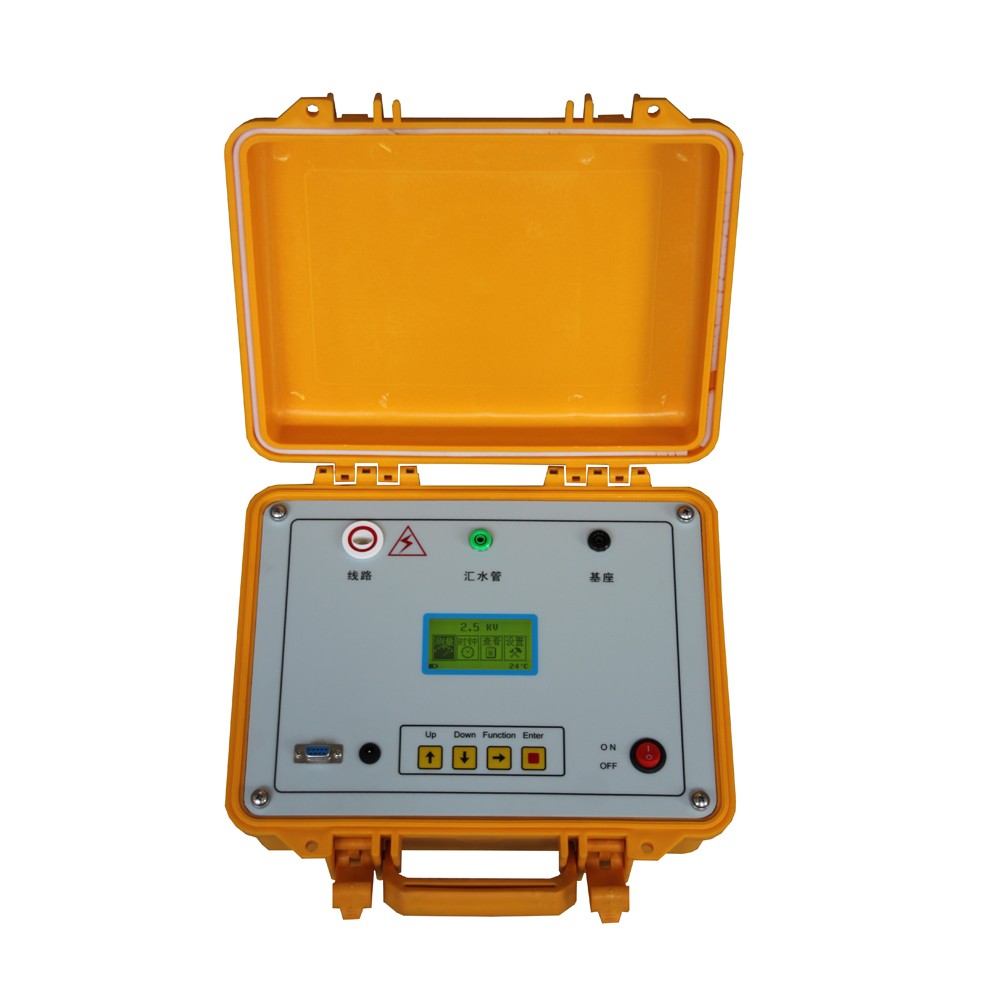

ED2681 5kvWater-Cooled Generator Insulation Resistance Tester is specifically designed for measuring tests on water-cooled generators, and can also be used for insulation test experiments in laboratories or on-site. Output current greater than25mAOutput voltage is high.5000VThe system includes a high-precision microcurrent measurement system and a digital step-up system. Measurement can be conducted by simply connecting the test sample with one high-voltage line and one signal line. The measurement is automated, with results displayed on a large LCD screen and stored for record-keeping.

Product Features

1.Adopted32Microcontroller-controlled, with a full Chinese operational interface, easy to operate.

2.High output current(2500VNo Chinese content provided.25mA)Short-circuit Current ≧25mA。

3.The high-pressure generation module utilizes full-sealing technology, featuring protective resistors for safety and reliability.

4.Robust anti-interference capability, meeting the on-site operation needs of ultra-high-voltage substation.

5.The automatic discharge has been tested and the discharge process is being monitored in real-time.

6.Suitable for measuring the insulation resistance and absorption ratio of water-cooled generators.R60S/R15SPolarization IndexR10min/R1min）。

7.Test high pressure for2500V/5000VAvailable for measurement up to20GΩ's insulation resistance.

8.Automatically compensates and adjusts the water polarization potential. The resistance between the base and the junction pipe is minimized.10kΩ also ensures measurement accuracy.

9.High output power, the load resistance between the conduit and the waterway can be as low as100kΩ(2500V)/150kΩ（5000VInsulation resistance measurement can be as low as1MΩ(2500V)/2MΩ(5000V)。

10.The insulation resistance value is indicated by an analog progress bar, allowing for a direct and instantaneous observation of the test process for capacitive samples. The logarithmic scale has minimal value jumps, making readings convenient.

11.Digital Display Utilized3 1/2 LCDDigital Gauge

12.LCDThe timer displays the test duration, and then...0～32The minute repeats its cycle, displaying minutes and seconds. Every15One bee buzzes once.

13.Automatically measures and remembersR15S、R60S、R10minAbsorption ratios and polarization indices, for review and reading upon completion of the test.
