35kV Insulation Boots Voltage Resistance Standard

Product Overview

Insulating boots and gloves testing has always been a labor-intensive, physically demanding, and high-volume task. Our company's newly launched fully automatic insulating boot and glove dielectric withstand and leakage current tester has resolved issues related to measurement accuracy, operational safety, and efficiency. However, the manual operation is still used for injecting water into the test sample's internal electrodes. To further enhance work efficiency and reduce the workload on operators, we have developed...EDFJS—QAutomated Water-Proof Insulation Boots and Gloves Testing Bench, which also supports the testing of insulation hats.

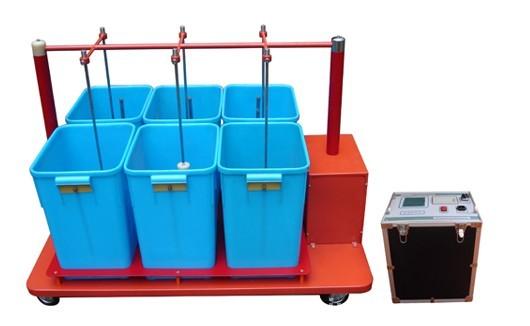

The test tank automatically fills with water, lowering the sample into the external electrode tank, connecting the high-voltage electrode to the sample, and entering the testing state upon completion. The entire process, including the lifting of the sample platform and the high-voltage electrode, is fully automated. One operation can be performed at a time.8Only sample testing. During the testing process, a large-scale test bench is used.LEDDigital Tube Display8Tested samples for leakage current and other parameters.

The test tank is controlled by a console that is completely isolated, which also handles data collection and storage. Alternatively, the computerized central console can be used to conduct the test, perform data collection, archiving, and issue test reports.

The test flume employs multi-path high-pressure drainage measurement technology and infrared data communication technology to achieve the purpose of safely measuring high-pressure leakage current. The operational section is completely isolated from the high-voltage system of the test stand, not onlyAccurateThe company measured multi-channel high-voltage leakage current and ensured the personal safety of the test personnel.

To enhance work efficiency and avoid redundant experiments, the adoption of high-pressure rapid disconnection technology can meet30kVHigh-voltage test voltage interruption. During the test process, the sample that has been punctured can be disconnected from the high-voltage test system, while the sample that has not been punctured continues the test until completion.

For further inquiries or purchase intentions regarding the products of Wuhan鄂电Electricity Test Equipment Co., Ltd., please call the manufacturer's direct sales hotline:400-034-8088Their professional team will provide you with more detailed information and services.
