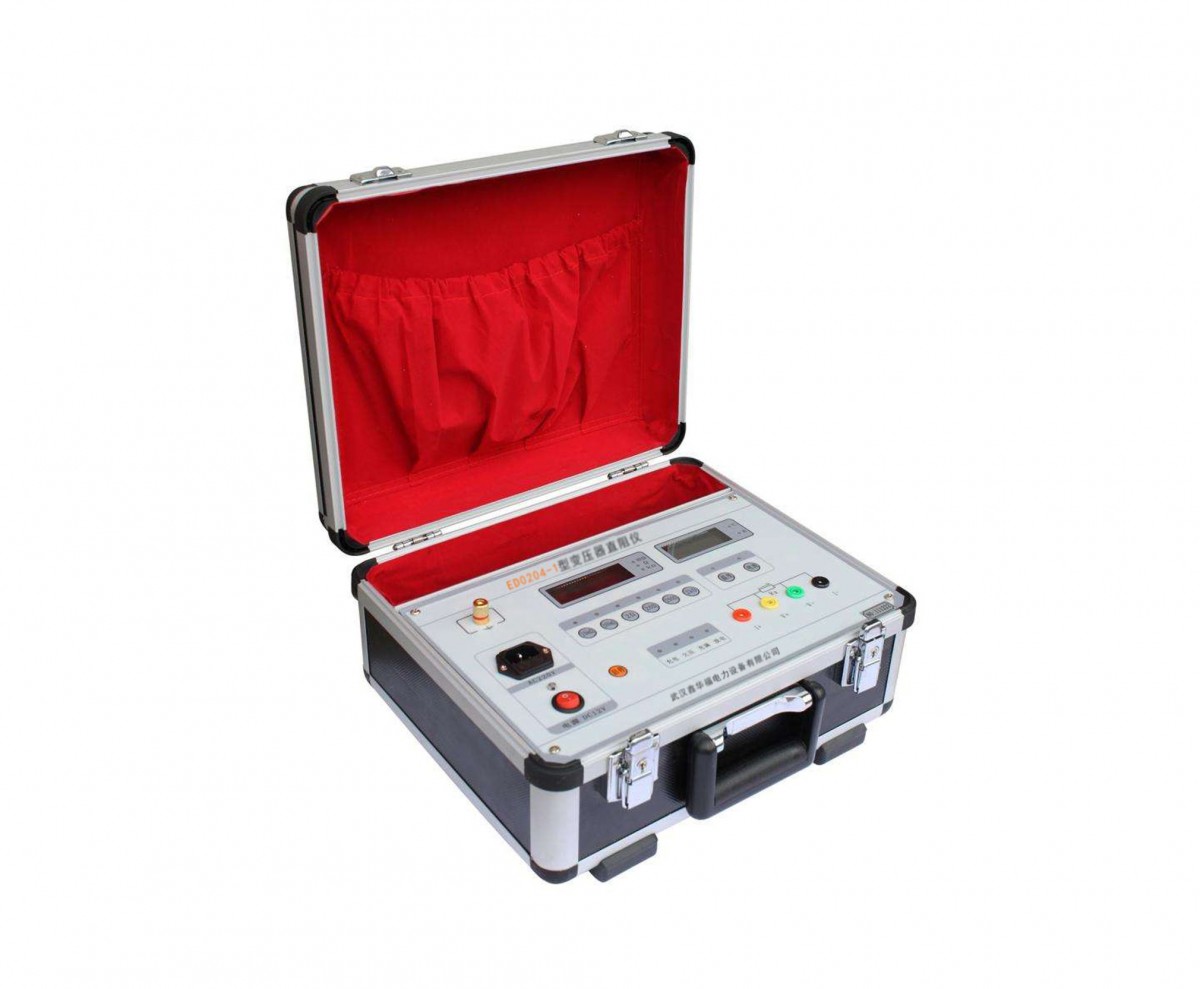

20A DC Resistance Tester

Product Overview

Transformer's DC resistance is a mandatory test item during the manufacturing process, including semi-finished and finished product testing, installation, handover testing, and preventive tests by power departments. It effectively detects manufacturing defects such as material selection, welding, loose connections, missing strands, and broken wires in transformer coils, as well as potential hazards that may arise after operation.

 ED0204-10BThe Type DC Resistance Tester is an innovative product featuring an internal high-capacity lithium battery. The instrument and test lines are designed as a single unit, making the product compact and easy to carry. The tester is suitable for measuring inductive test pieces such as transformers, current transformers, and reactors, as well as resistive test pieces like copper bars, wires, and switch contact points. It boasts fast testing speed and high accuracy.

Feature Highlights

◆ Battery-powered or220VAdaptive power supply for communication, a single charge allows for continuous testing of over a hundred transformer direct resistance tests, with a simple and convenient testing process.

◆ Outputs six levels of current, high output10AElectricity, high output25VVoltage, and can automatically select current for convenience and speed.

Wide range, high precision,500uΩ～50KΩ。

◆ Features resistance-to-temperature conversion function.

◆ Equipped with multiple protection functions including back electromotive force protection, open circuit protection, power failure protection, and overheat alarm.

◆4.3Our industrial-grade high-brightness color LCD screens maintain crystal-clear visibility even in bright sunlight.

◆ Features onboard storage and USB drive storage.
